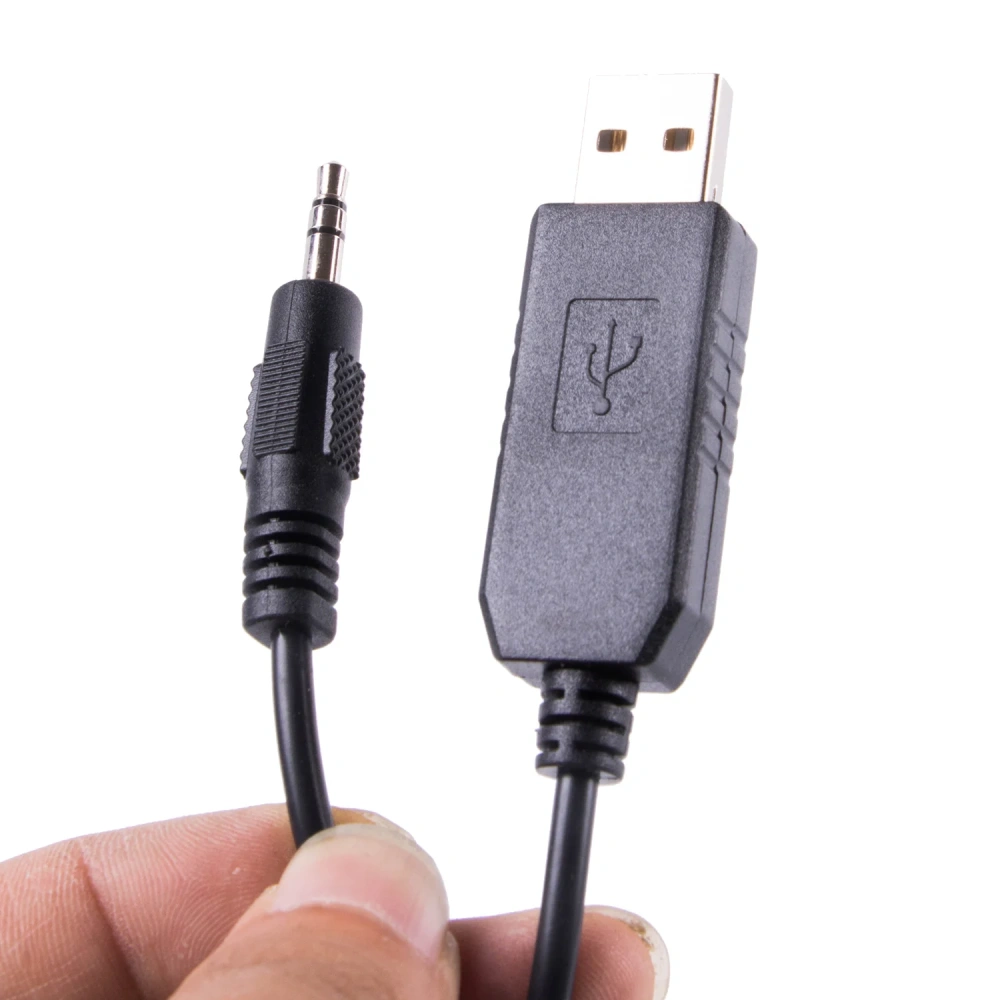

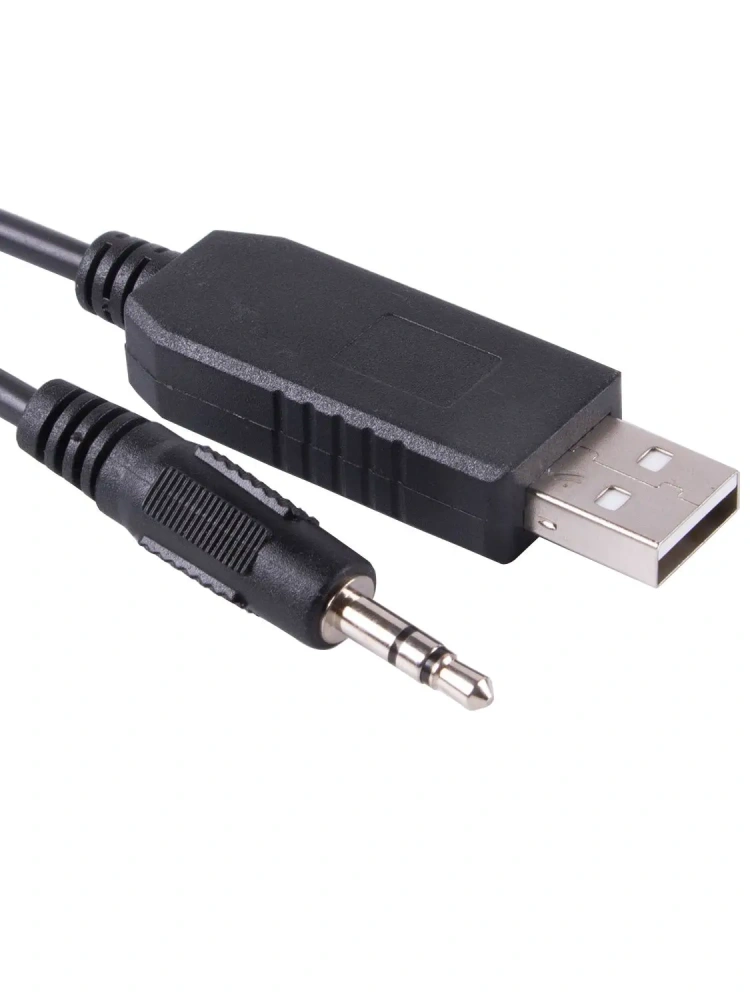

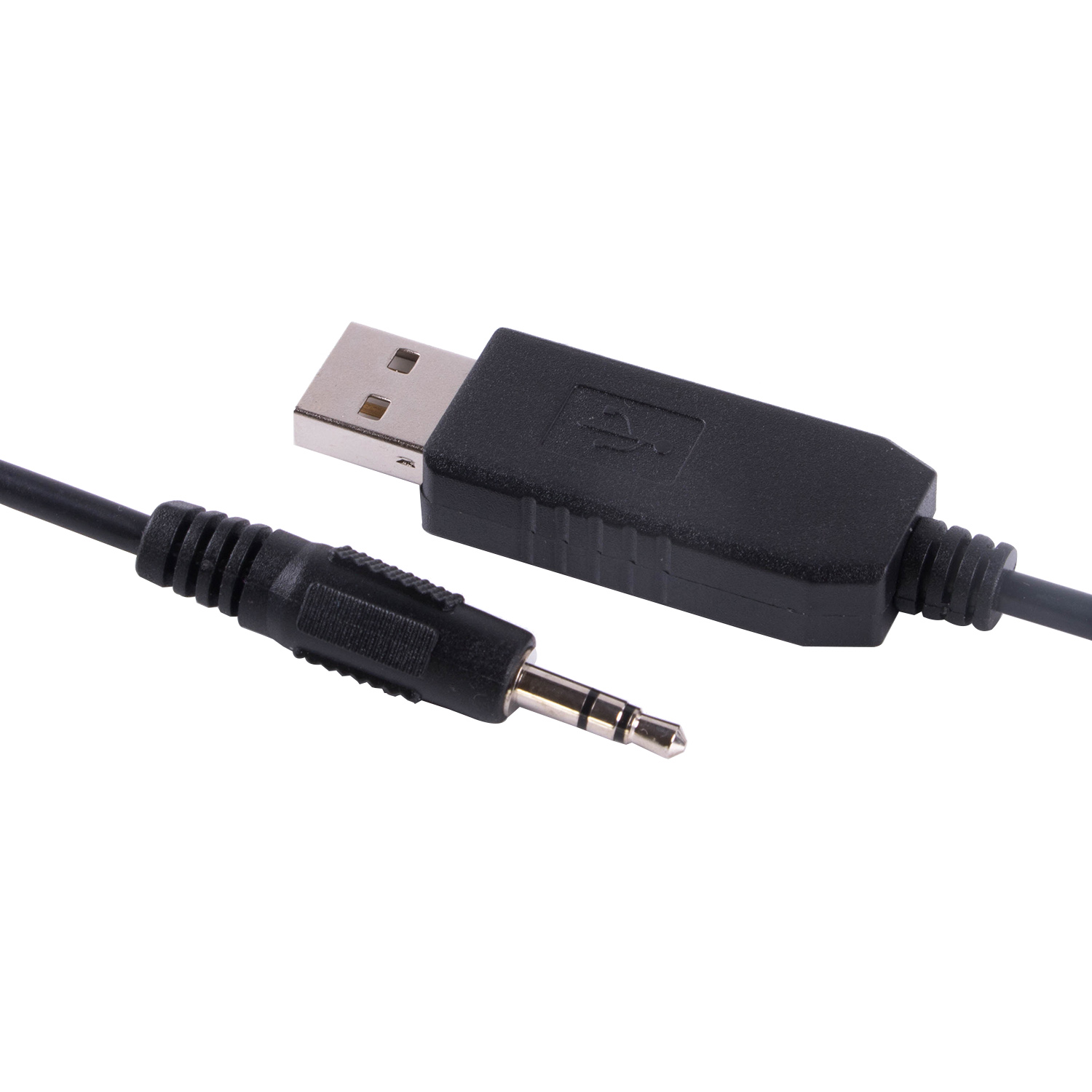

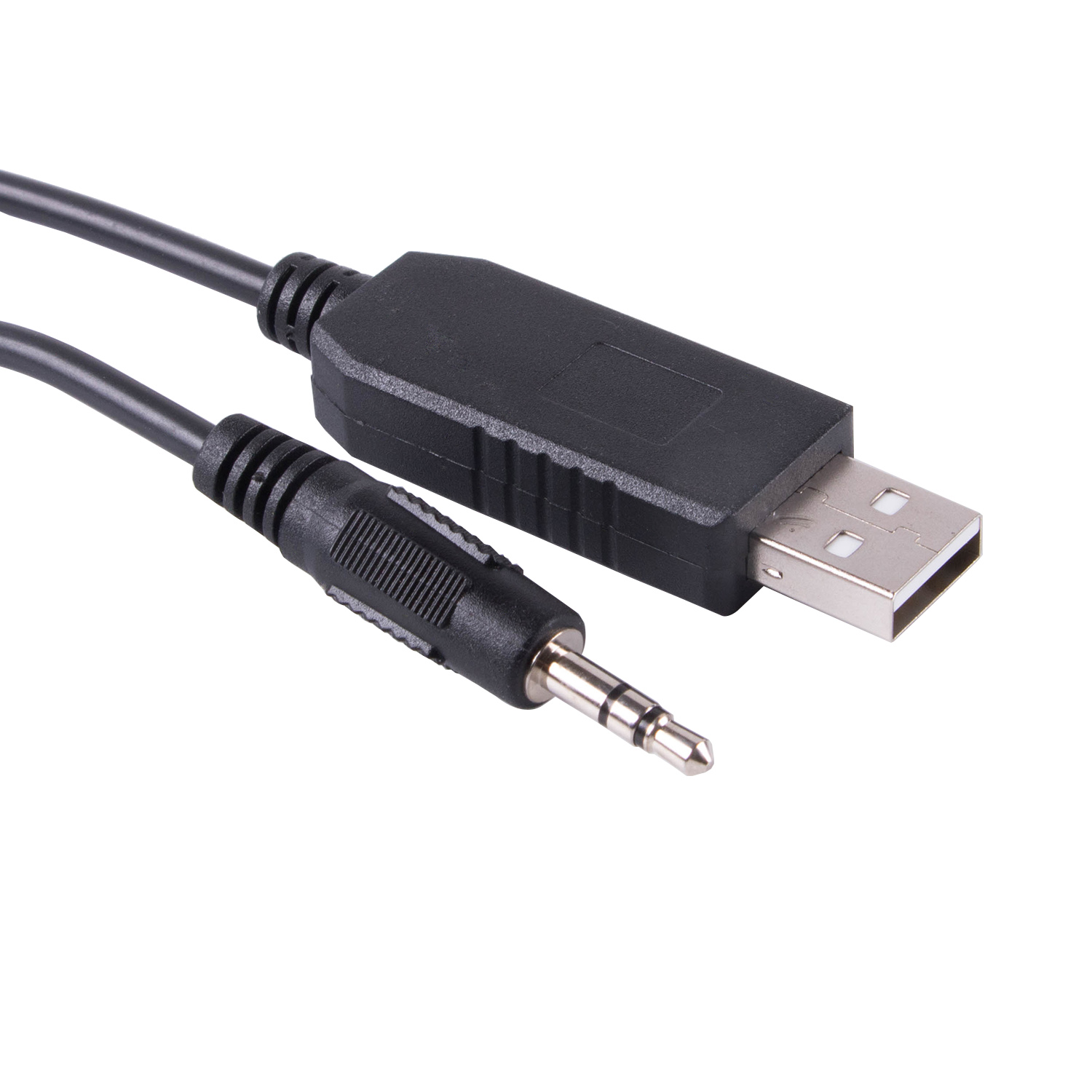

PL2303GT USB to RS232 Serial Port 3.5mm Mini Audio Jack Plug 3 Poles TX RX GND Converter Adapter Communication Uprgade Cable
USB RS232 to 3.5mm jack serial cable for intel galileo board console cable
3.5mm 3P audio jack male

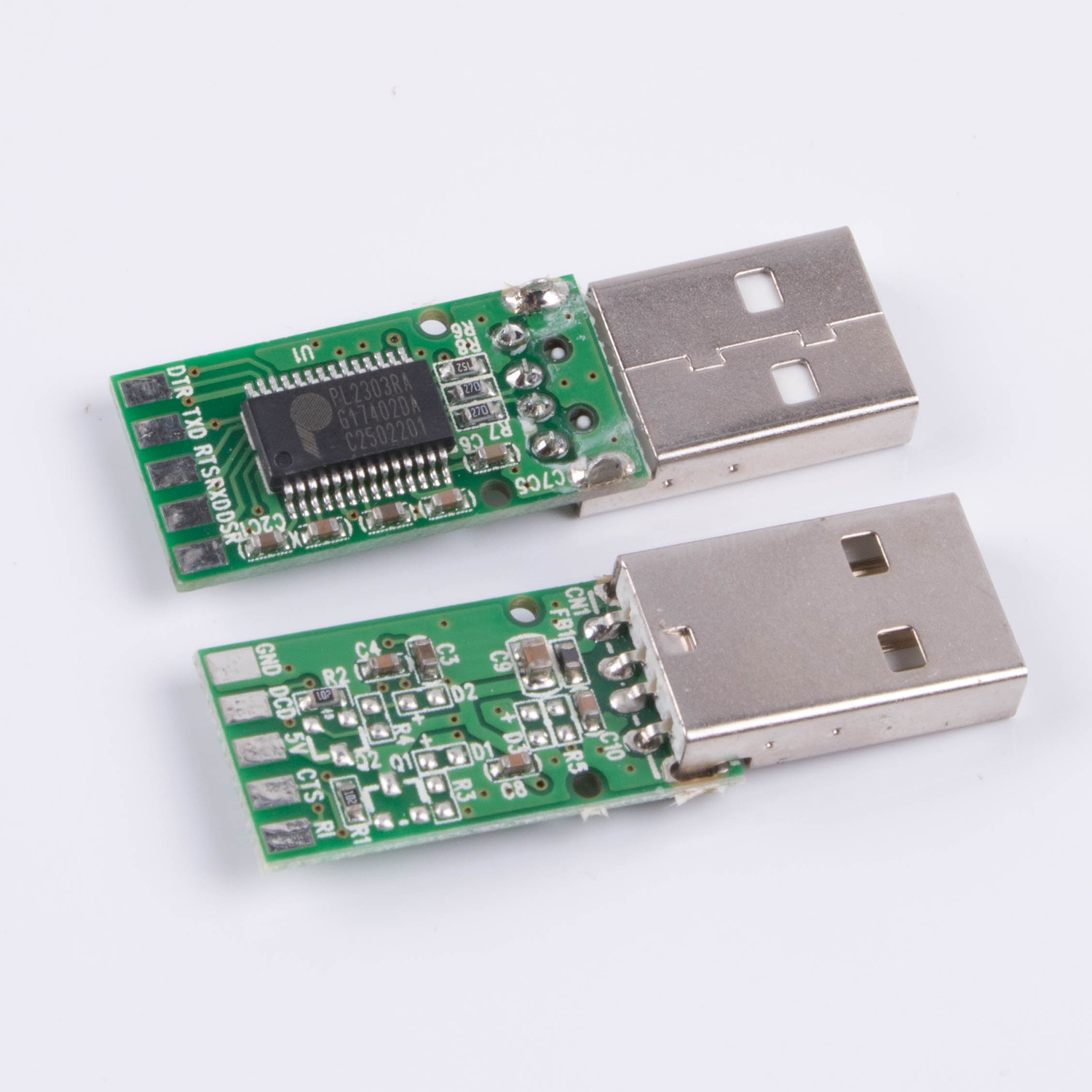

PL2303RA rs232 chip
GND, TXD, RXD optional
PC COM RS232 standard signals, not TTL

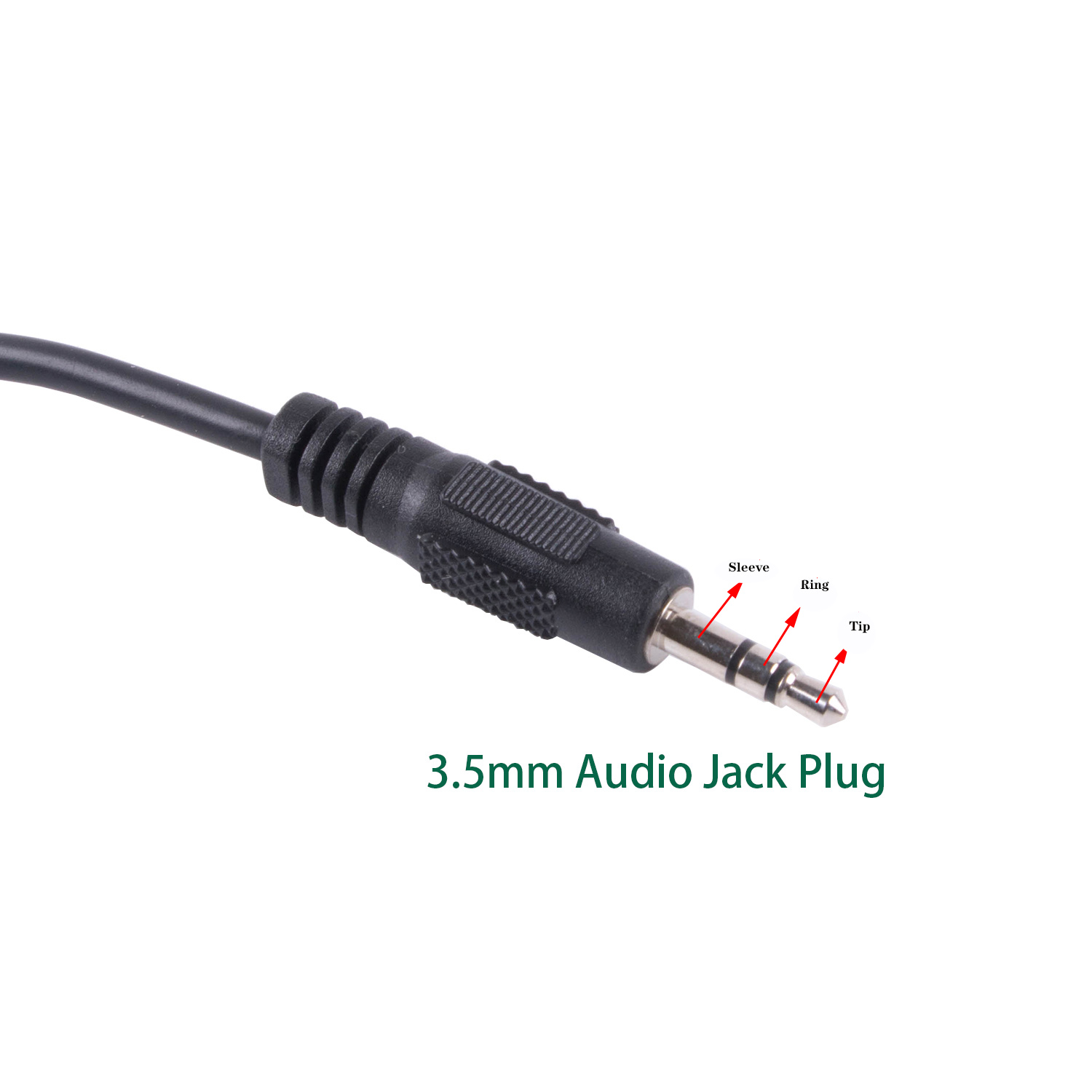

Standard Pinout: Tip-RX, Ring-TX, Sleeve-GND
Customize Pinout: Tip-TX, Ring-RX, Sleeve-GND
TX is match with RX of device, RX is match with TX of device
Cable: 3C*28AWG black PVC jacket, 6FT cable
Support Win XP/9X, Win 7, Linux, CE, etc
For PL2303GT driver download,Please click here !
See the Product Vedio Here :
About PL2303GT
