FTDI USB to RJ45 RS232 Serial Console Rollover Cable for Cisco Huawei Router 1.5m 3m 5m Length
For Cisco Auxiliary port for Cisco 1000, 1600, 2500, 2600, and 3600 series routers pinout
FTDI USB RS232 console cable for cisco router, huawei, fortinet router
Cisco H3C HP Arba Huawei Fortinet routers are tested working fine 2 in
1, more convenient, more stable
Full support for Windows, MAC and Linux, Android. Microsoft (HCL)
certified to be compatible with Windows, no CD needed because the
drivers are part of the OS distribution. Supports hardware flow control
used to implement the CISCO break sequence.
USB RS232 to RJ45 USB console cable Update the cab-console-rj45 Update
the DB9 to RJ45 console cable as most PC, tablet pc, notebook, mobile
phone, mobile pc without DB9
Length:1.8M 3.0M 5.0M FTDI driver download:http://www.ftdichip.com/FTDriver.htm
Cisco console port for Cisco 1000, 1600, 2500, 2600, And 3600 series routers pinout
The
console and auxiliary ports on Cisco IOS routers are asynchronous
serial ports. The console port is configured as data communications
equipment (DCE)
Pin Name Description Dir
1 RTS Request To Send OUT
2 DTR Data Terminal Ready OUT
3 TXD Tranceive Data OUT
4 GND Ground -
5 GND Ground -
6 RXD Receive Data IN
7 DSR Data Set Ready IN
8 CTS Clear To Send IN
This cable usb side is housing, not molded
USB2.0 compatible, full speed(12M)
USB RS232 serial to RJ45 console cable with shielding
USB for cisco router controlling cable for upgrading DB9 - RJ45 cable
FT232 USB RS232 CONVERTER
USB serial to RJ45 cable

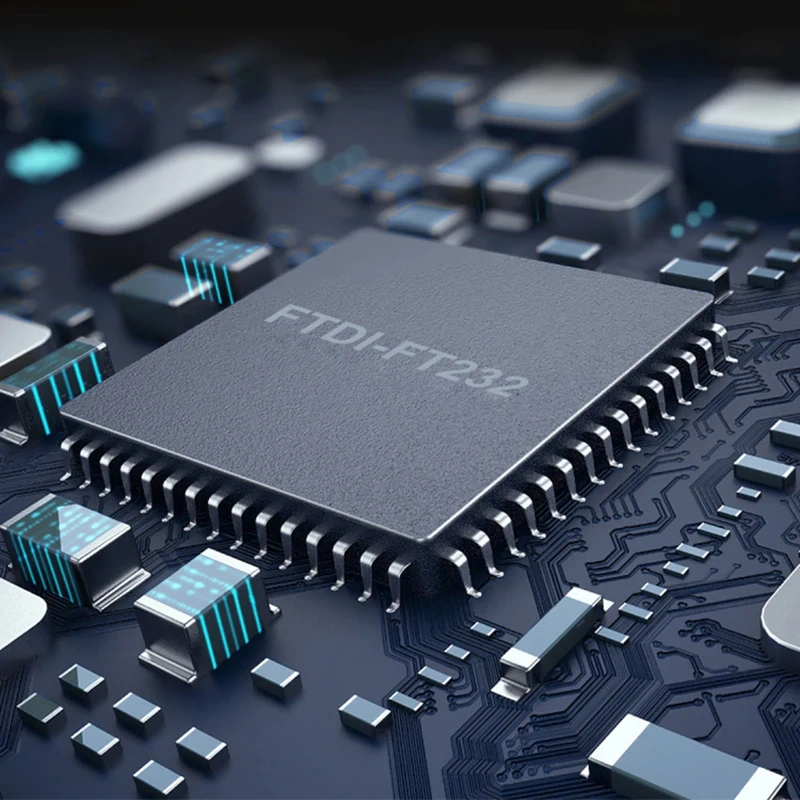

FT232RL+ZT213 chip
Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS
Integrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
On-board: TX/RX/CTS/RTS/GND/VCC/DTR/DST/DCD/RI VCC=5v from usb VDD directly, no extra power needed
8 core, 28AWG, copper, PVC jacket, with drain wire connect RJ45 shielded
L=1.5m 3.0m 5.0m Application: router controlling, POS terminal, serial modem
Package:

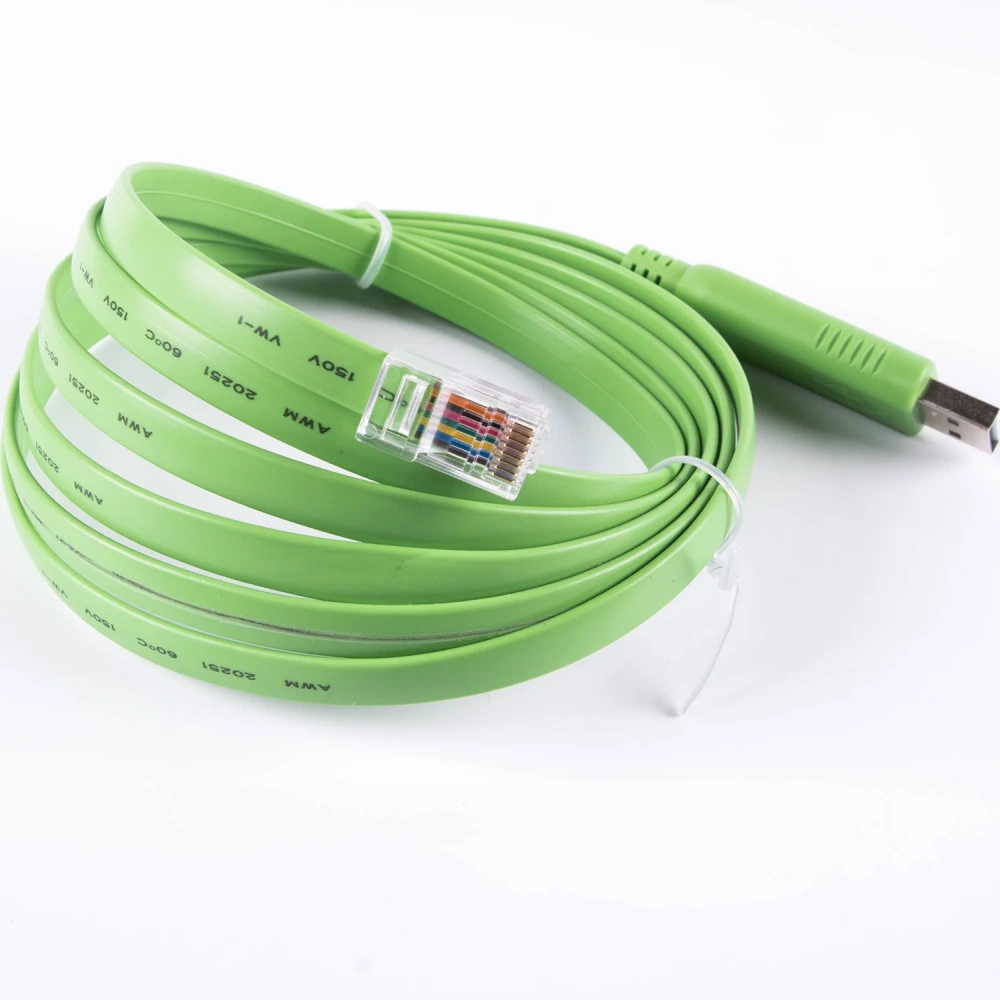

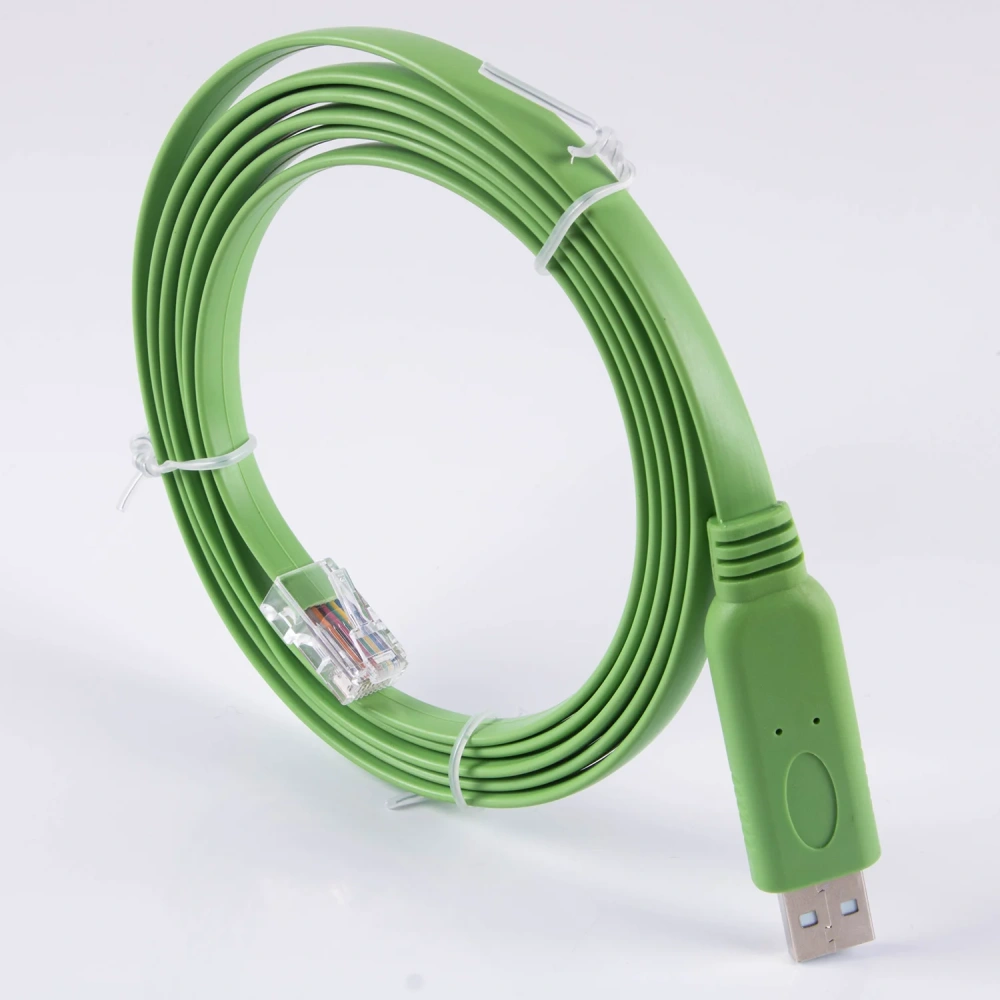

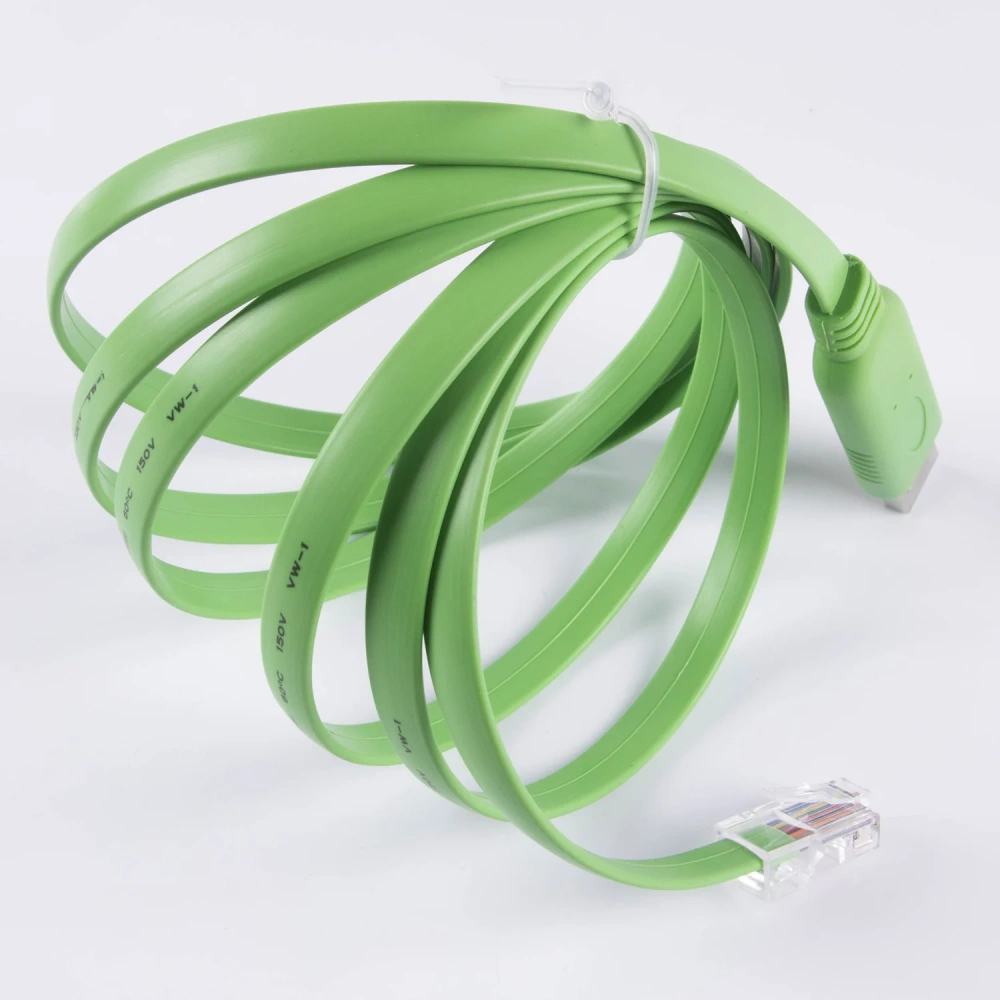

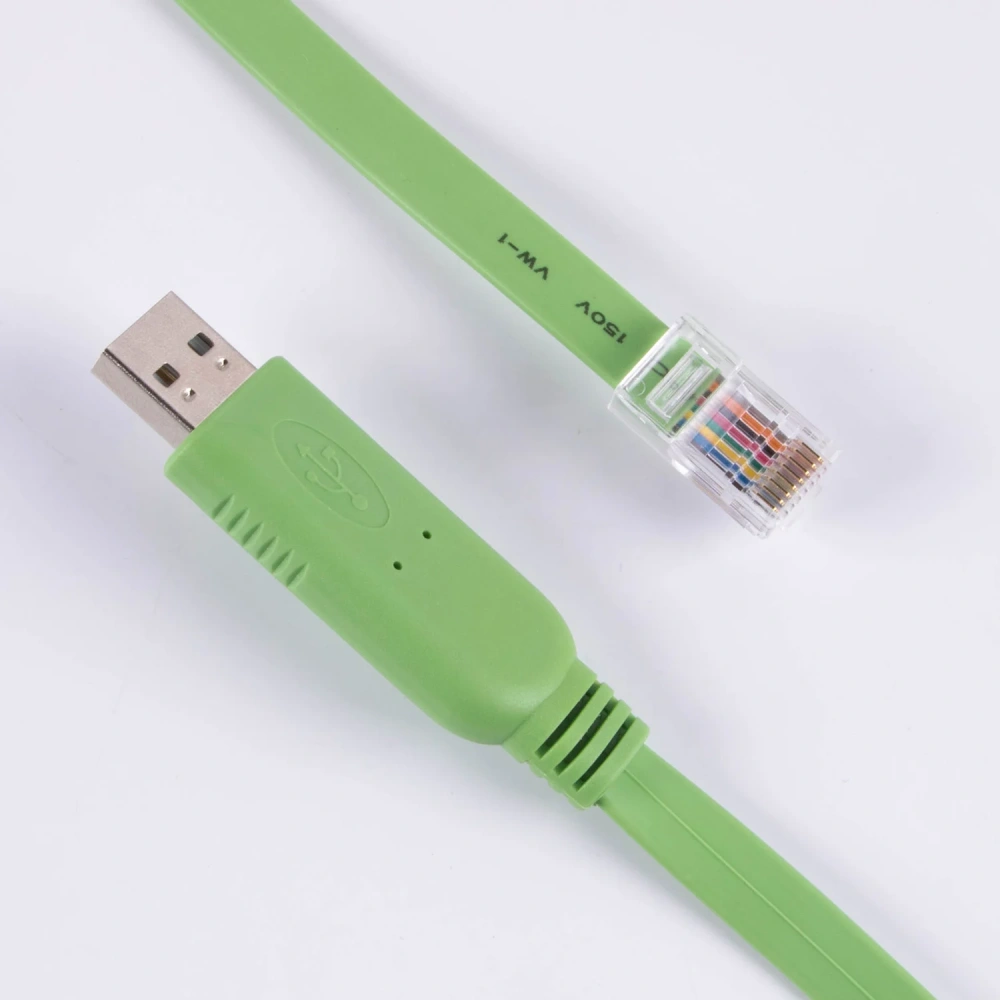

1 X USB RJ45 CABLE
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART
interface Integrated Circuit Devices. The FT232R is a USB to serial UART
interface with optional clock generator output, and the new
FTDIChip-ID? security dongle feature. In addition, asynchronous and
synchronous bit bang interface modes are available. USB to serial
designs using the FT232R have been further simplified by fully
integrating the external EEPROM, clock circuit and USB resistors onto
the device.
The
FT232R adds two new functions compared with its predecessors,
effectively making it a "3-in-1" chip for some application areas. The
internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be
brought out of the device and used to drive a microcontroller or
external logic. A unique number (the FTDIChip-ID?) is burnt into the
device during manufacture and is readable over USB, thus forming the
basis of a security dongle which can be used to protect customer
application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated
1024 bit internal EEPROM for I/O configuration and storing USB VID,
PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
Support for older versions of Windows Desktop
NOTE:
Microsoft have ended support for certifying XP and VISTA through their
WHCK test program. As such current builds will still work on XP and
VISTA but are not Microsoft certified.
Differences in Driver API
For
most of these operating systems two types of driver are available:
Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver
emulates a standard PC serial port such that the USB device may be
communicated with as a standard RS232 device. The D2XX driver allows
direct access to a USB device via a DLL interface.

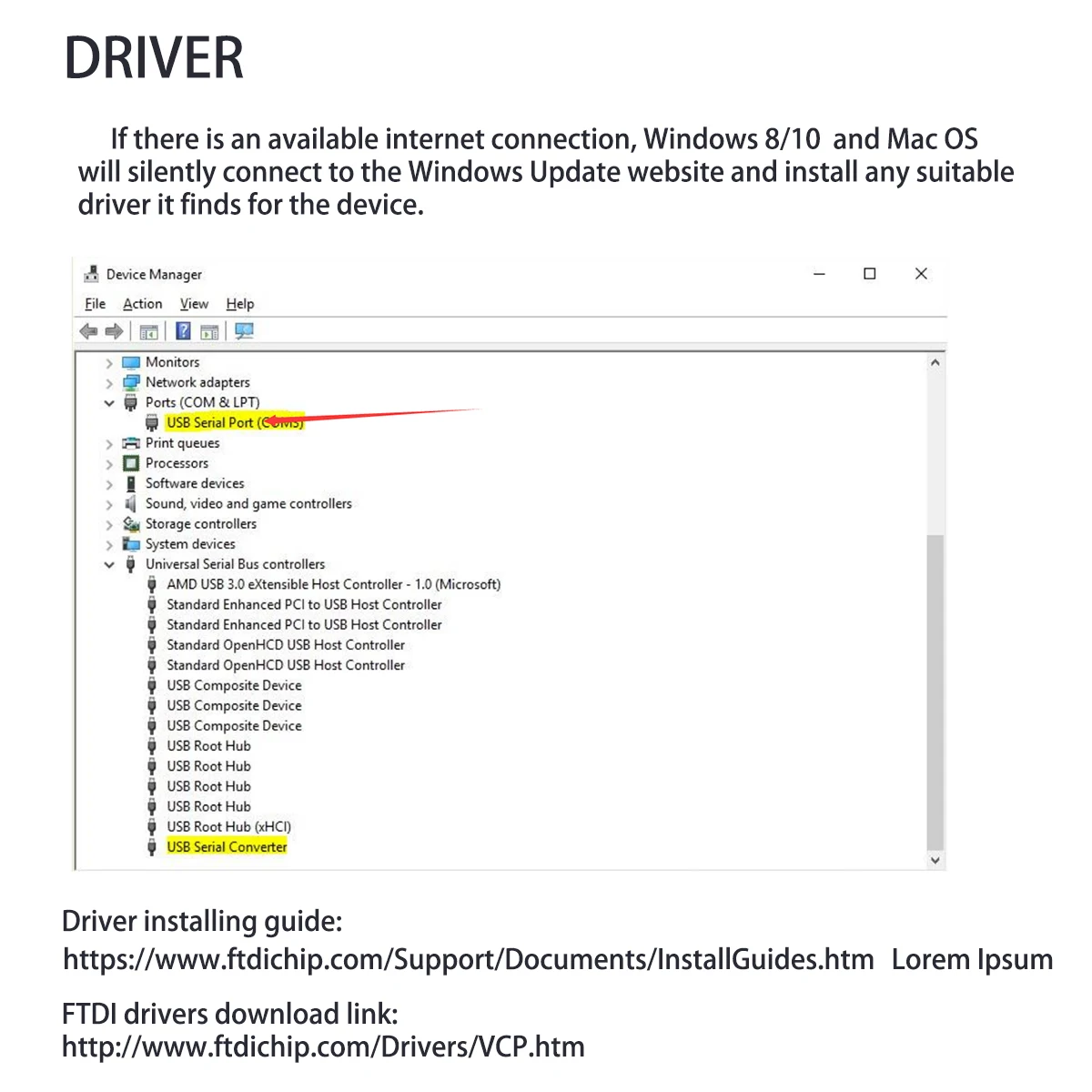

To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCPorD2XX)
and then locate the appropriate operating systems. With the exception
of Windows 98 and Windows ME, all devices are supported in each driver
package.
If
a VCP driver is required for Android please refer to the following
application note: TN 132 Adding FTDI Devices VCP Driver Support to
Android
