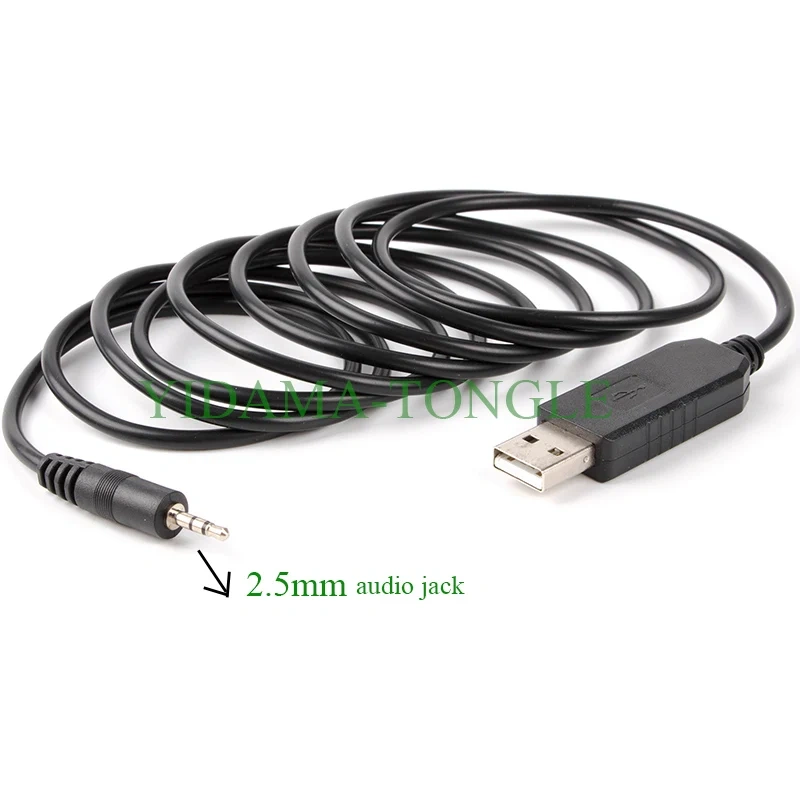

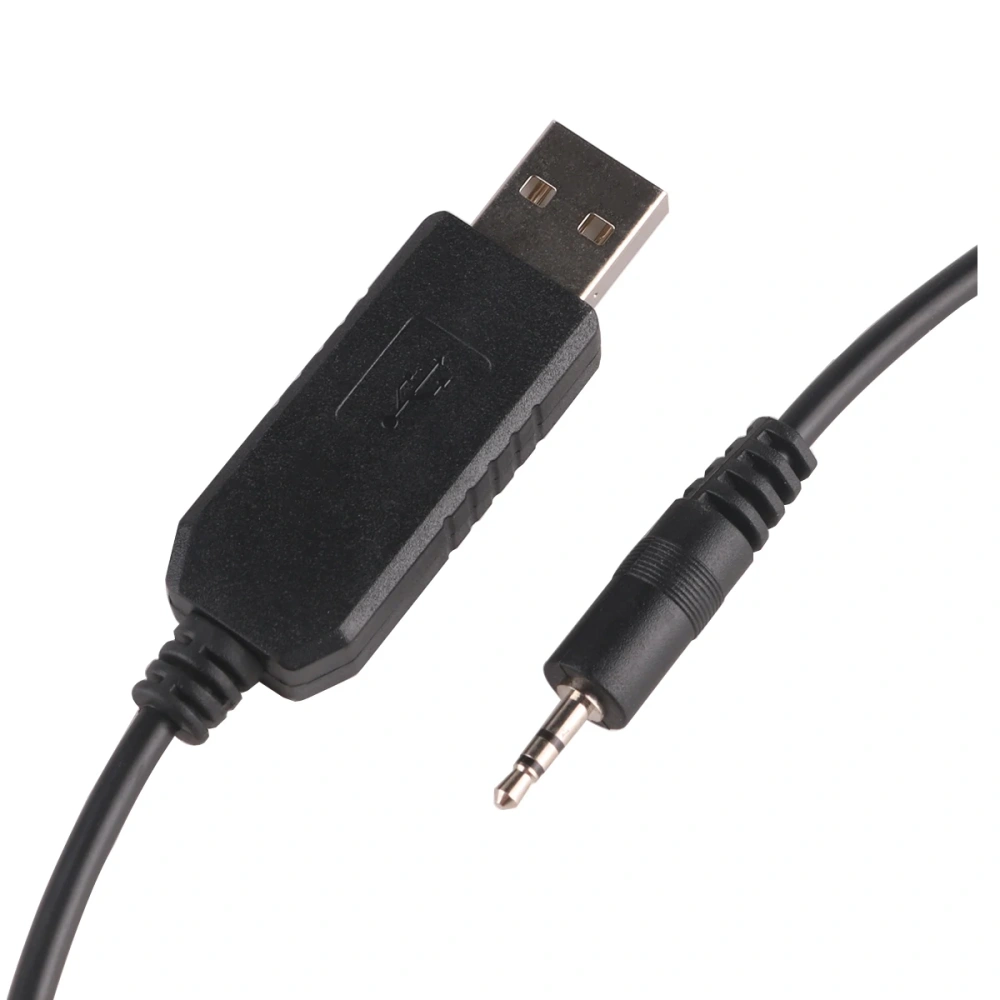

usb ttl 3.3v cp2102 to 2.5mm audio jack adapte cable for glucose meter areo glucomen ready datenkabel support win7 8 10 android

win7 8 10 android mac cp2102 3.3v usb uart ttl to 2.5mm audio jack cable for glucose meter areo glucomen ready datenkabel

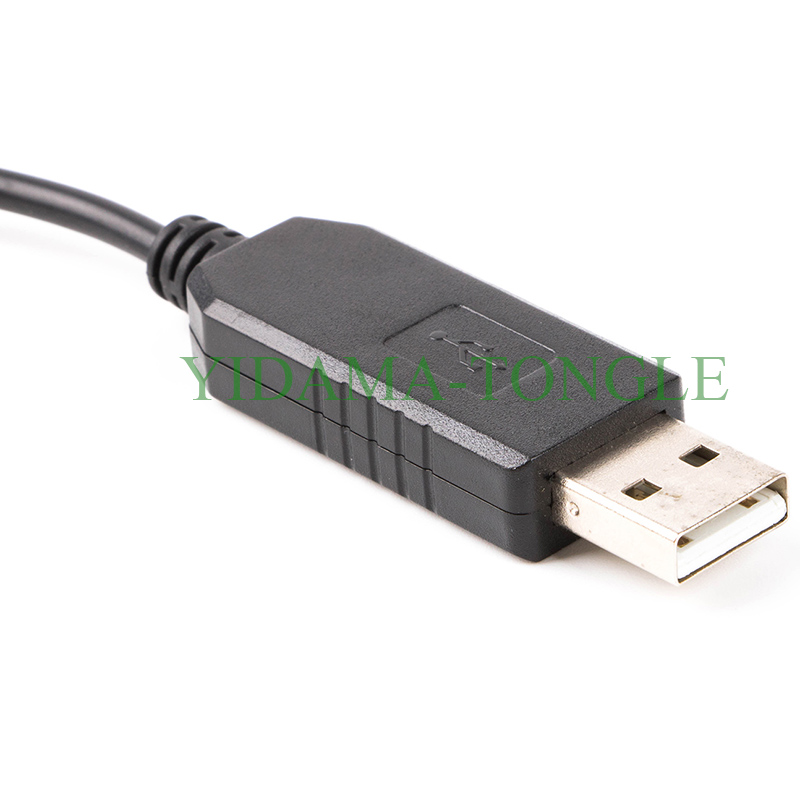

• CP2102 UART TTL cable

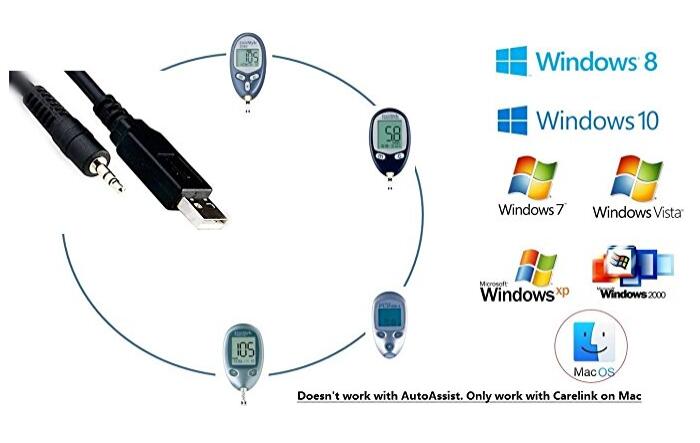

• For blood glucose meter

• Silicon CP2102 UART TTL 3.3v level

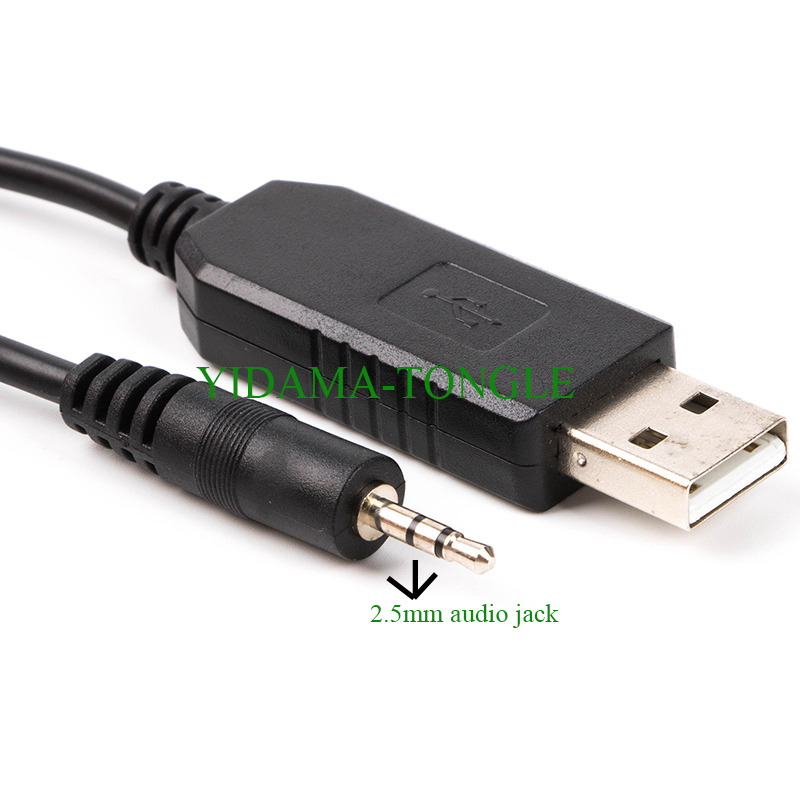

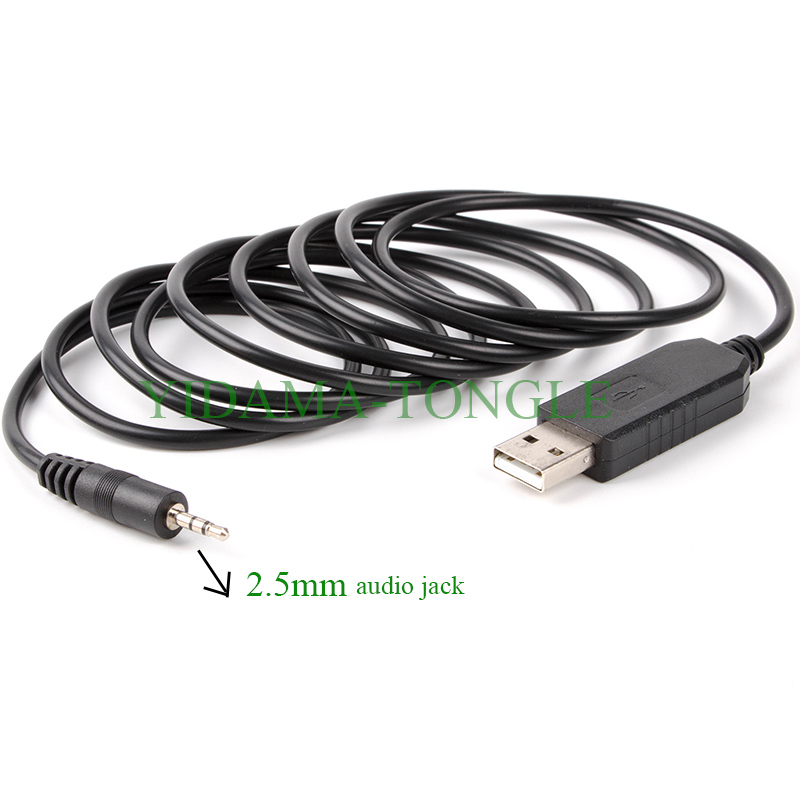

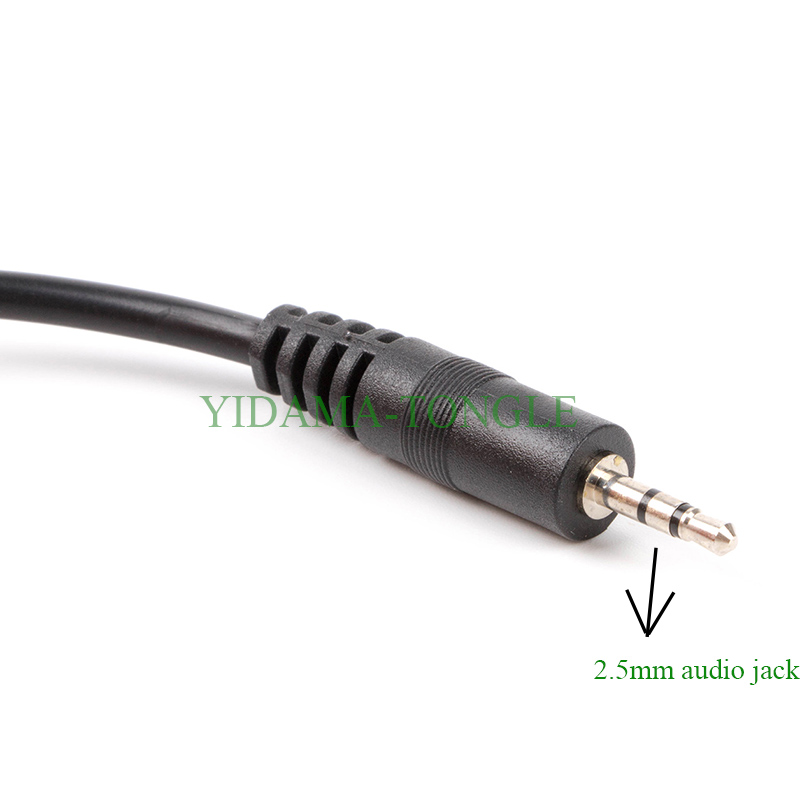

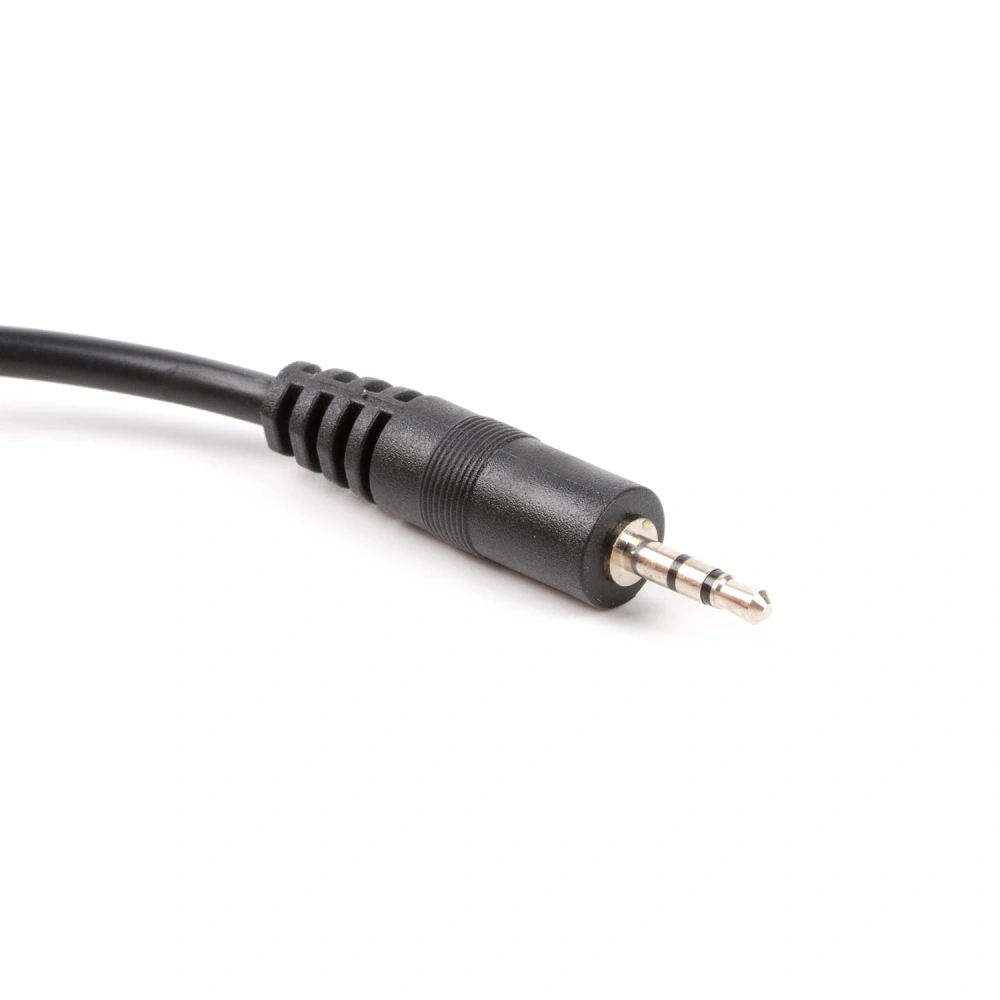

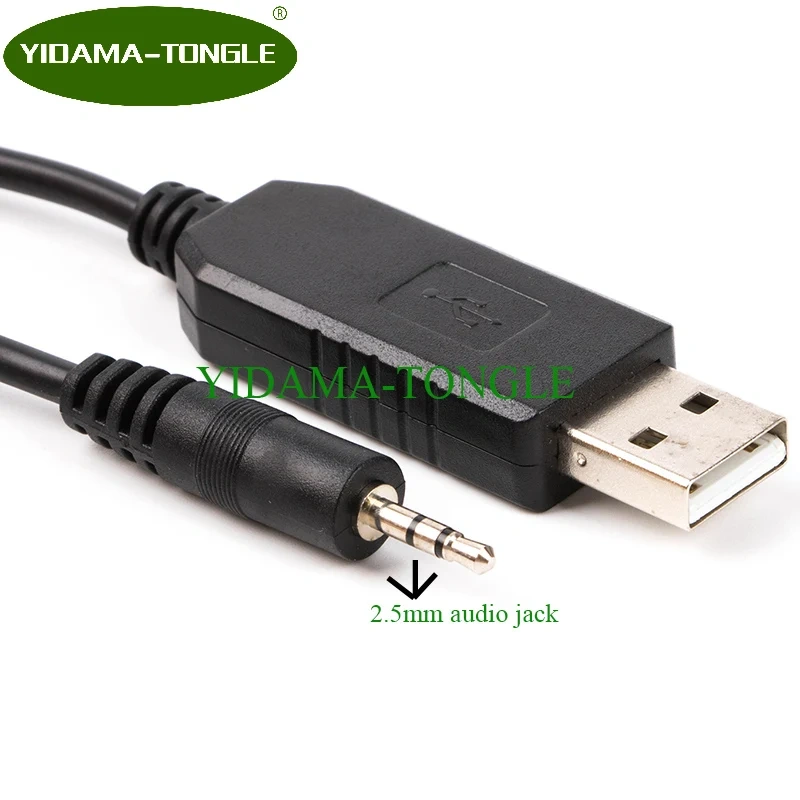

• USB serial TTL to  2.5mm audio jack male, 3P

• USB disk refresh cable

• vcc(5/3.3v), tx, rx, gnd

• Length: 1.8m

• OD=3.5mm, PVC jacket, black

• ROHS, CE compliance

• PE blank bag for each cable

Standard pinout for areo glucose meter series: glucomen ready is Tip - TXD, Ring -RXD, Sleeve-GND

Other brand, other models pinout may be different, please buy it discretely

Package: 1 X USB to 2.5mm 3.3v ttl uart mini audio jack plug converter cable

About CP2102

Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101

USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
-   Data bits: 5, 6, 7, and 8
-   Stop bits: 1, 1.5, and 2
-   Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-Event character support
-Line break transmission

Virtual COM Port Device Drivers
-Works with existing COM port PC Applications
-Royalty-free distribution license
-Windows 10/8/7/Vista/Server 2003/XP/2000
-Mac OS-X/OS-9
-Linux

USBXpress™ Direct Driver Support
-Royalty-Free Distribution License
-Windows 7/Vista/XP/Server 2003/2000
-Windows CE

Example Applications
-Upgrade of RS-232 legacy devices to USB
-Cellular phone USB interface cable
-USB interface cable
-USB to RS-232 serial adapter
Supply Voltage
-Self-powered: 3.0 to 3.6 V
-USB bus powered: 4.0 to 5.25 V

Download for Android
