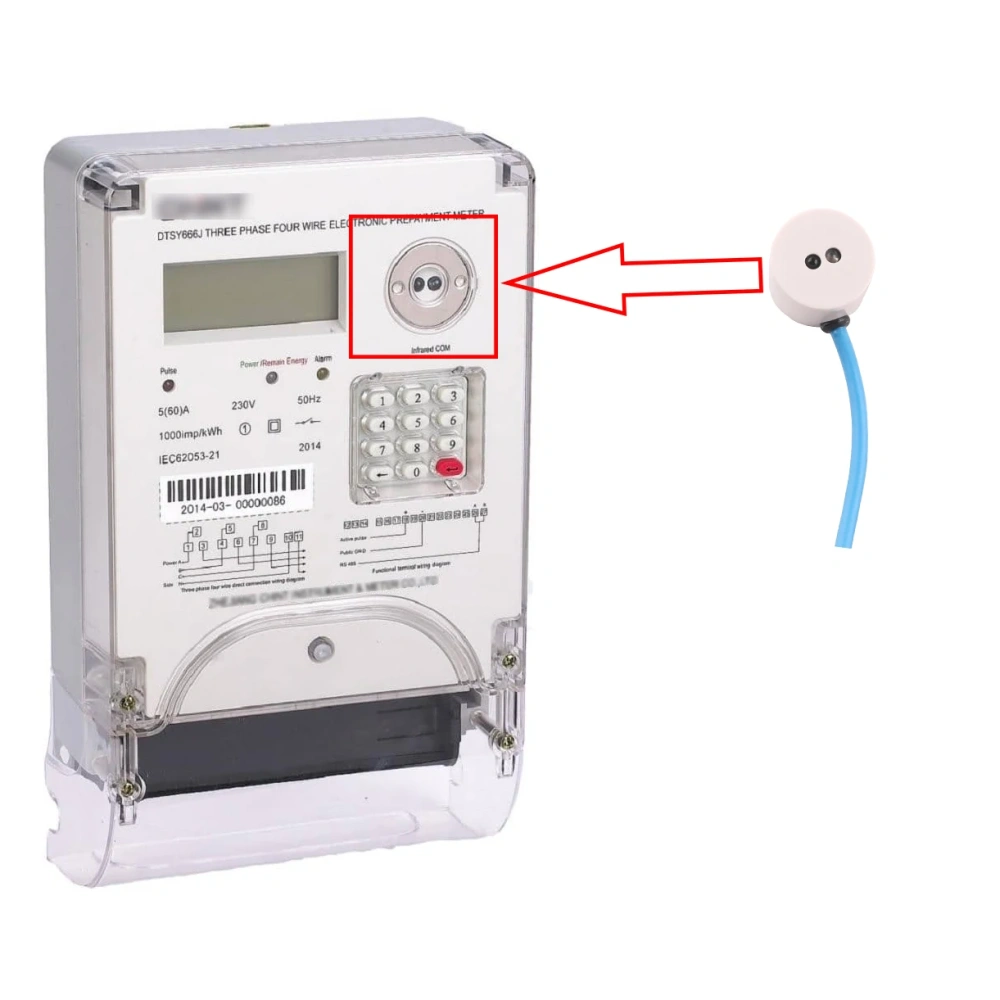

Application: Data collection of electric energy meters, gas meters, water meters
New original FT232RQ imported chip, USB interface power supply, no need for external power supply.
Support multiple versions of Windows operating system, MacOS, Linux and other systems.

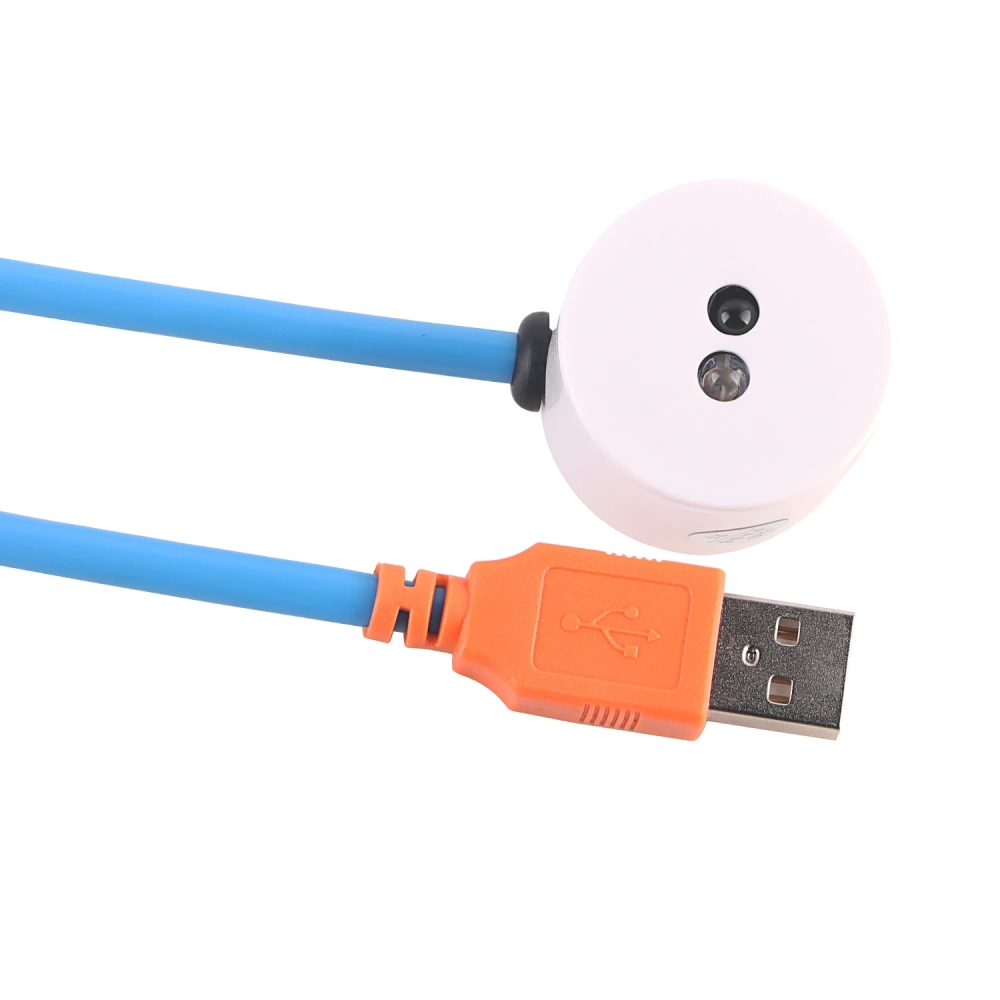

Industrial-grade meter reader, Near infrared, wavelength 940nm.

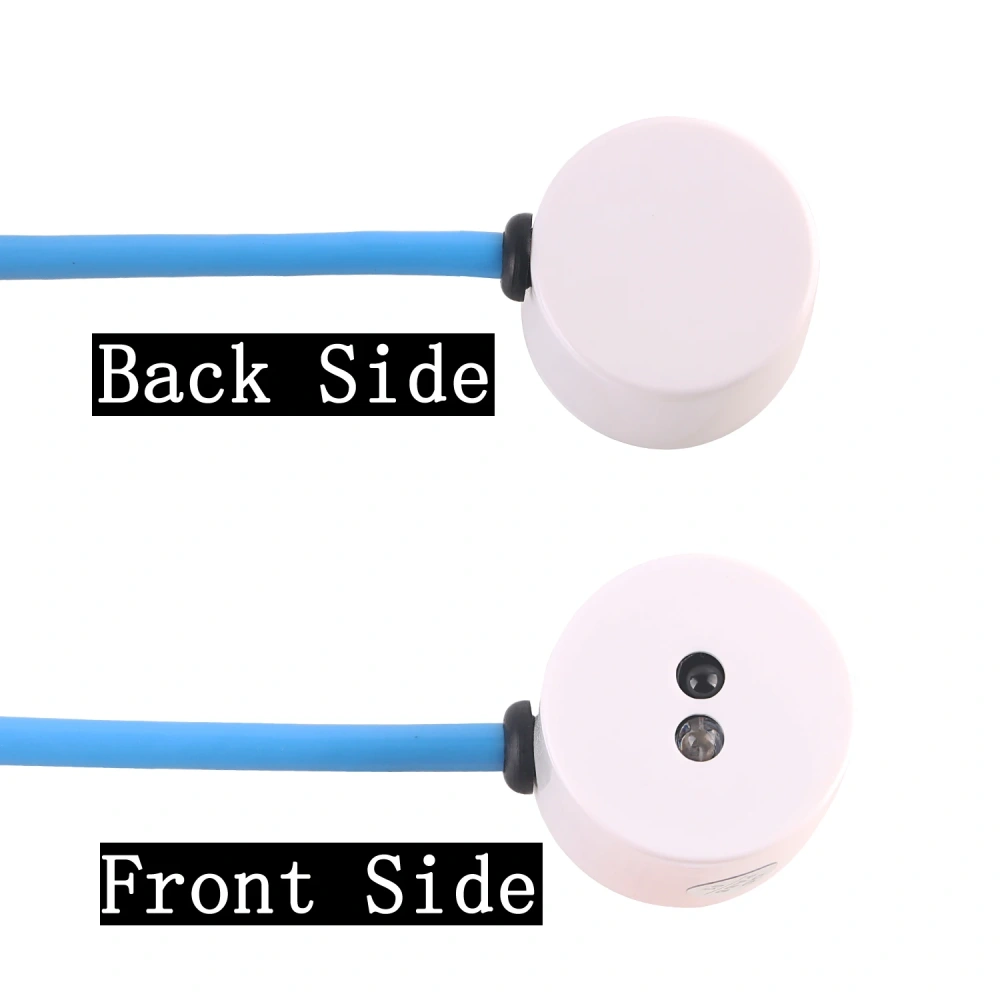

Infrared head size: diameter 32mm,transmitting and receiving distance: 6.5mm (size is for reference only, tolerance ±2mm)
IEC standard industrial grade, the converter adopts FT232RQ chip, ±15KV ESD protected transceiver circuit, industrial-grade optical receiver/transmitter.
Transparent transmission, supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.
Environment: specified working range -25℃-70℃。
VIRTUAL COM PORT (VCP) Drivers are available for the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS 8/9, OS-X
- Linux 2.4 and greater - Android(J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
