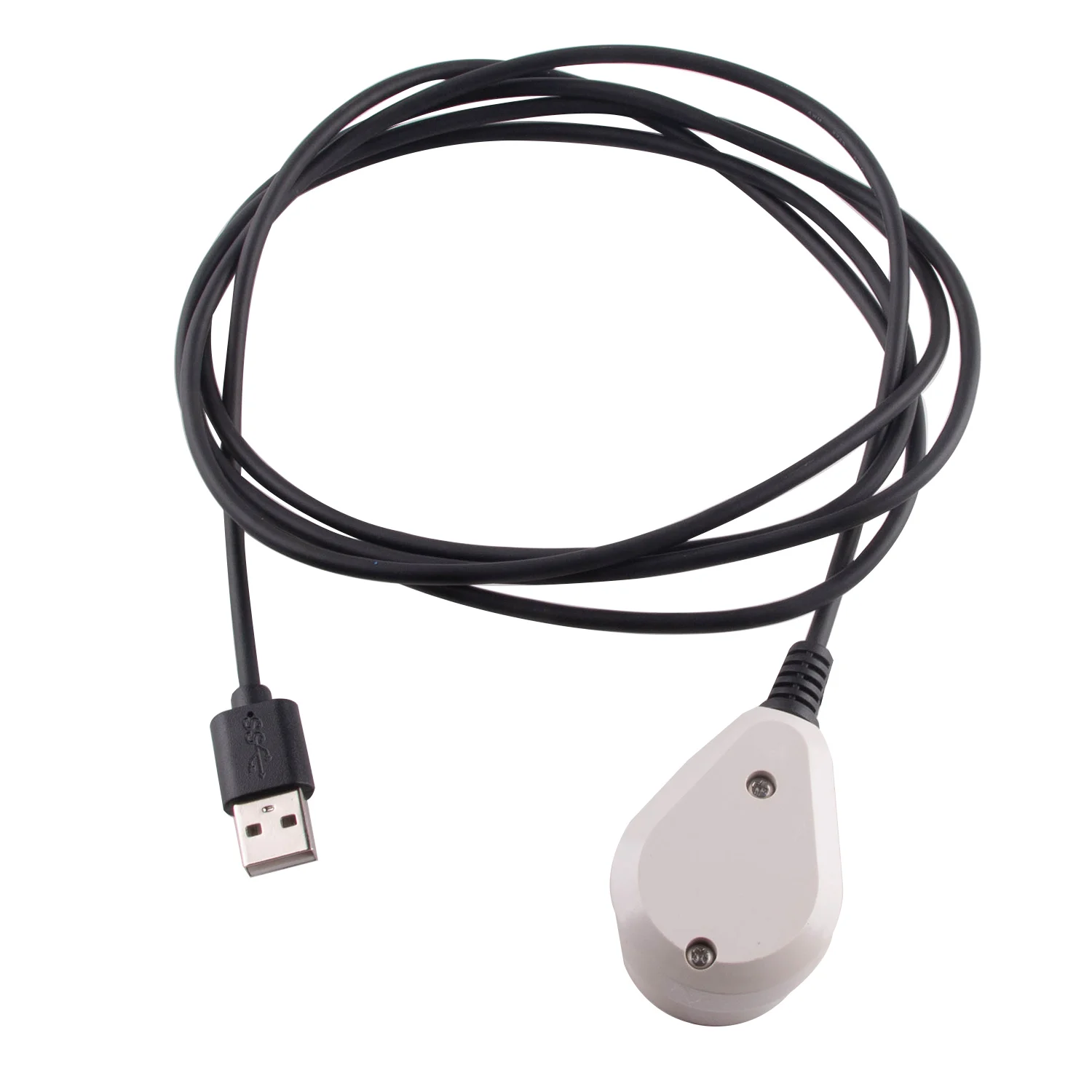

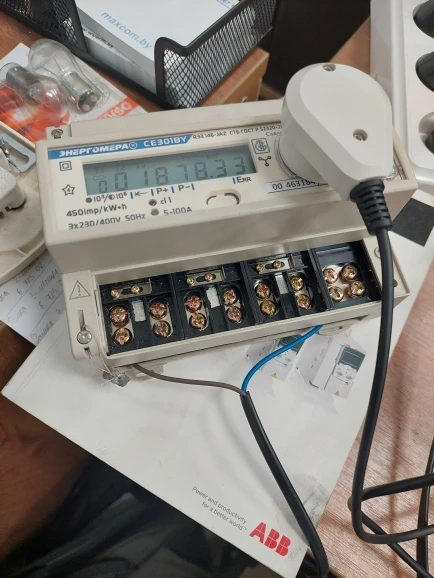

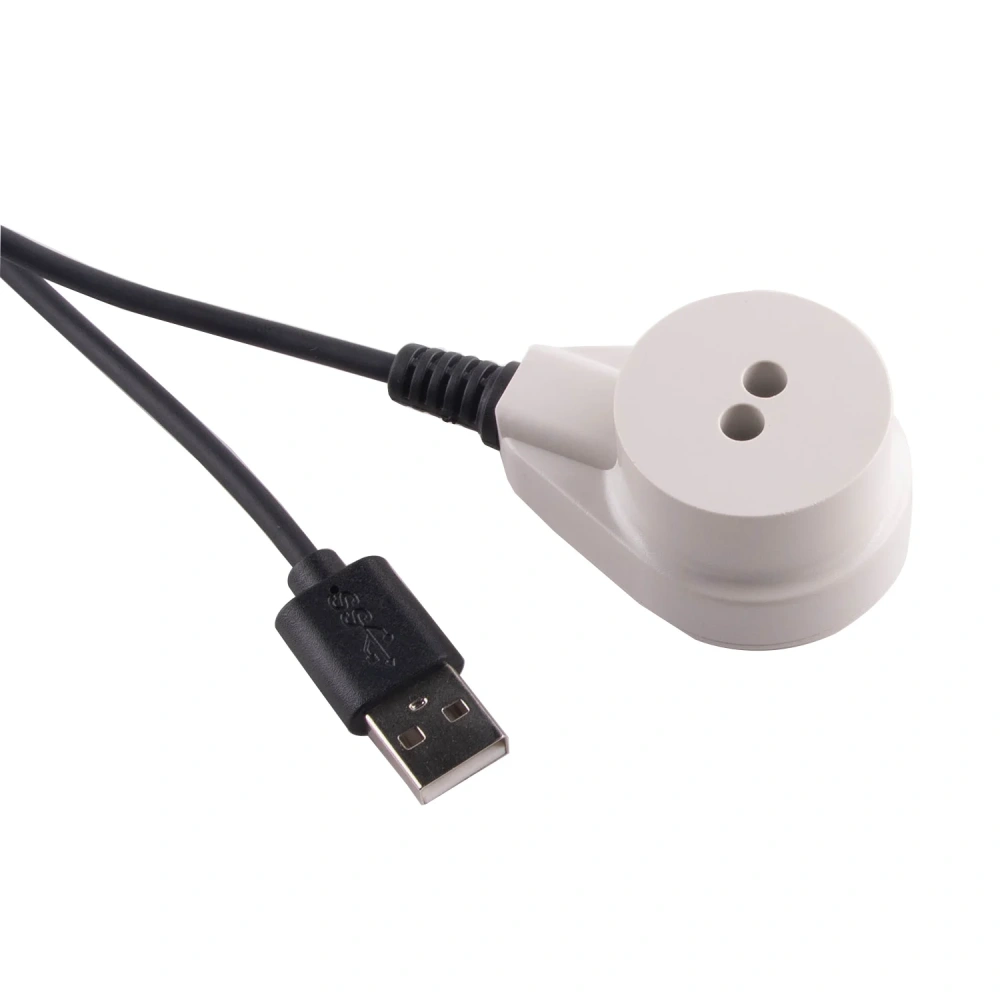

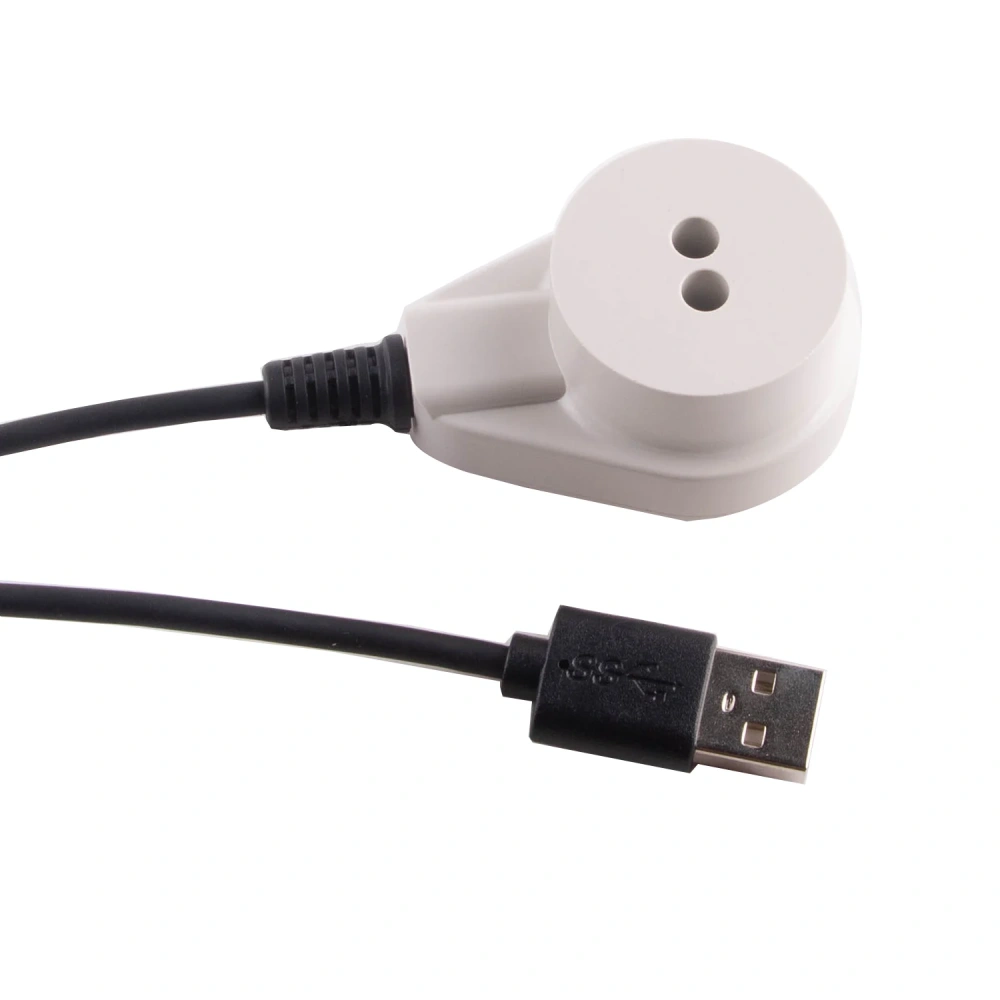

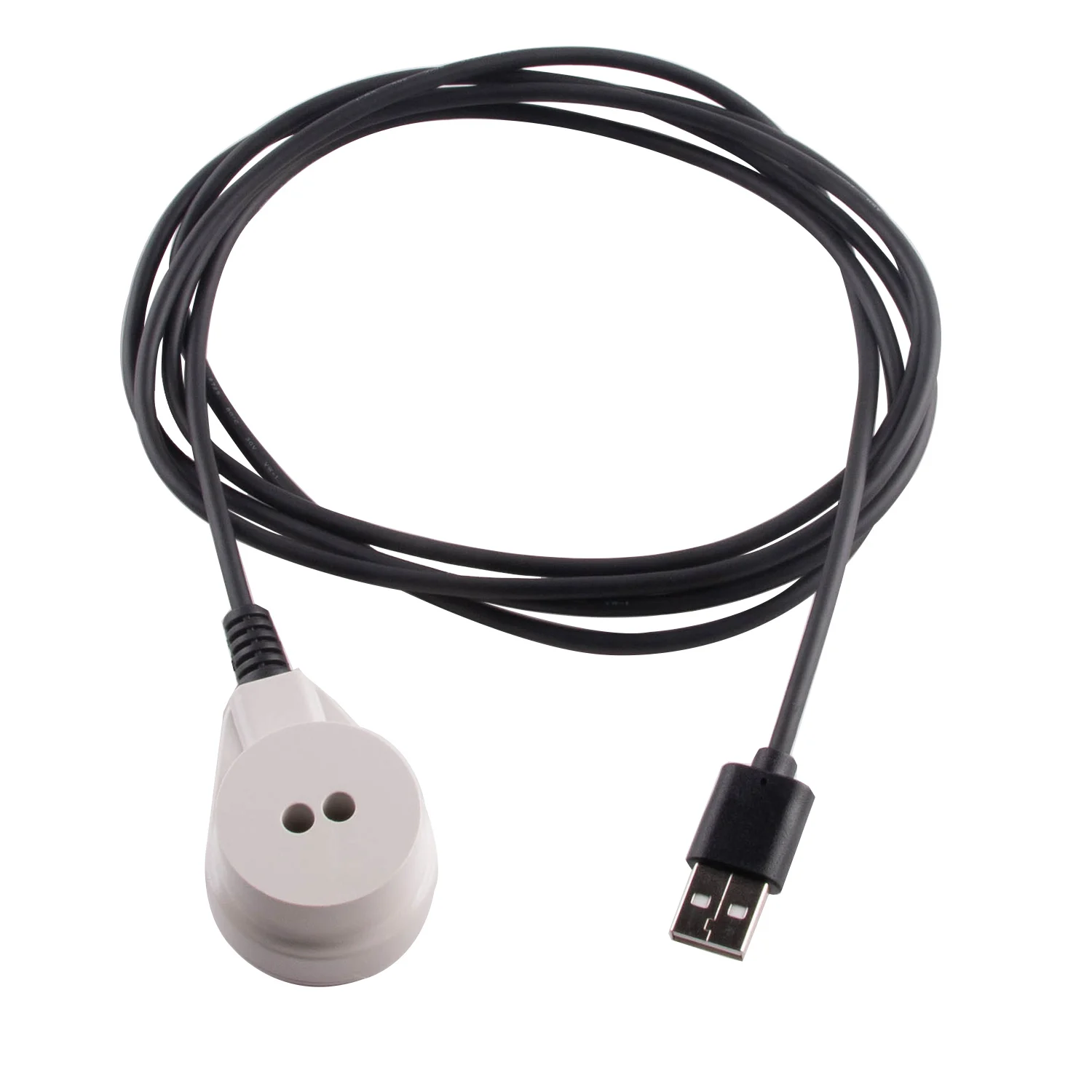

USB to Near Infrared IR Meter Reader Power Meter IEC62056/1107/DLMS Transparent Transmission Communication Photoelectric Head

CP2102 Chip import from United States

System Win7/8/10/XP/2000/Android/Mac OS/Linux/Win CE/Vista

Standard Length: 2.0M

CP2102 Driver Download Website :Please Click Here !

Features of USB to NIR Communication Converter:

1. The communication baud rate supports 300-19200bps

2. USB power supply does not require a separate external power supply

3. IEC62056-21 standard size, standard near infrared communication interface

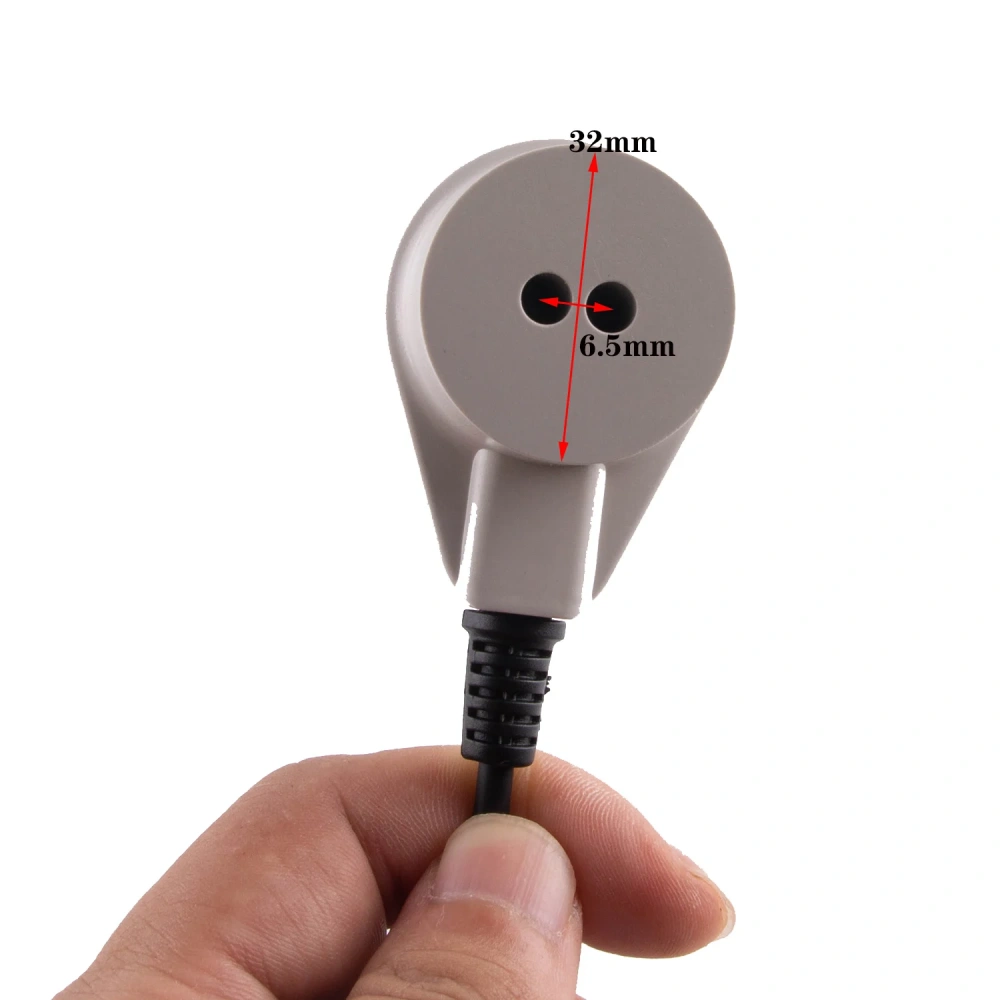

4. Connotation 25mm * 15mm * 5mm galvanized magnet

5. The unique structure of the deep hole design avoids receiving and sending interference, and it is also convenient to read data without a meter cover.

About CP2102

Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101

USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
-   Data bits: 5, 6, 7, and 8
-   Stop bits: 1, 1.5, and 2
-   Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-Event character support
-Line break transmission

Virtual COM Port Device Drivers
-Works with existing COM port PC Applications
-Royalty-free distribution license
-Windows 10/8/7/Vista/Server 2003/XP/2000
-Mac OS-X/OS-9
-Linux

USBXpress™ Direct Driver Support
-Royalty-Free Distribution License
-Windows 7/Vista/XP/Server 2003/2000
-Windows CE

Example Applications
-Upgrade of RS-232 legacy devices to USB
-Cellular phone USB interface cable
-USB interface cable
-USB to RS-232 serial adapter
Supply Voltage
-Self-powered: 3.0 to 3.6 V
-USB bus powered: 4.0 to 5.25 V
