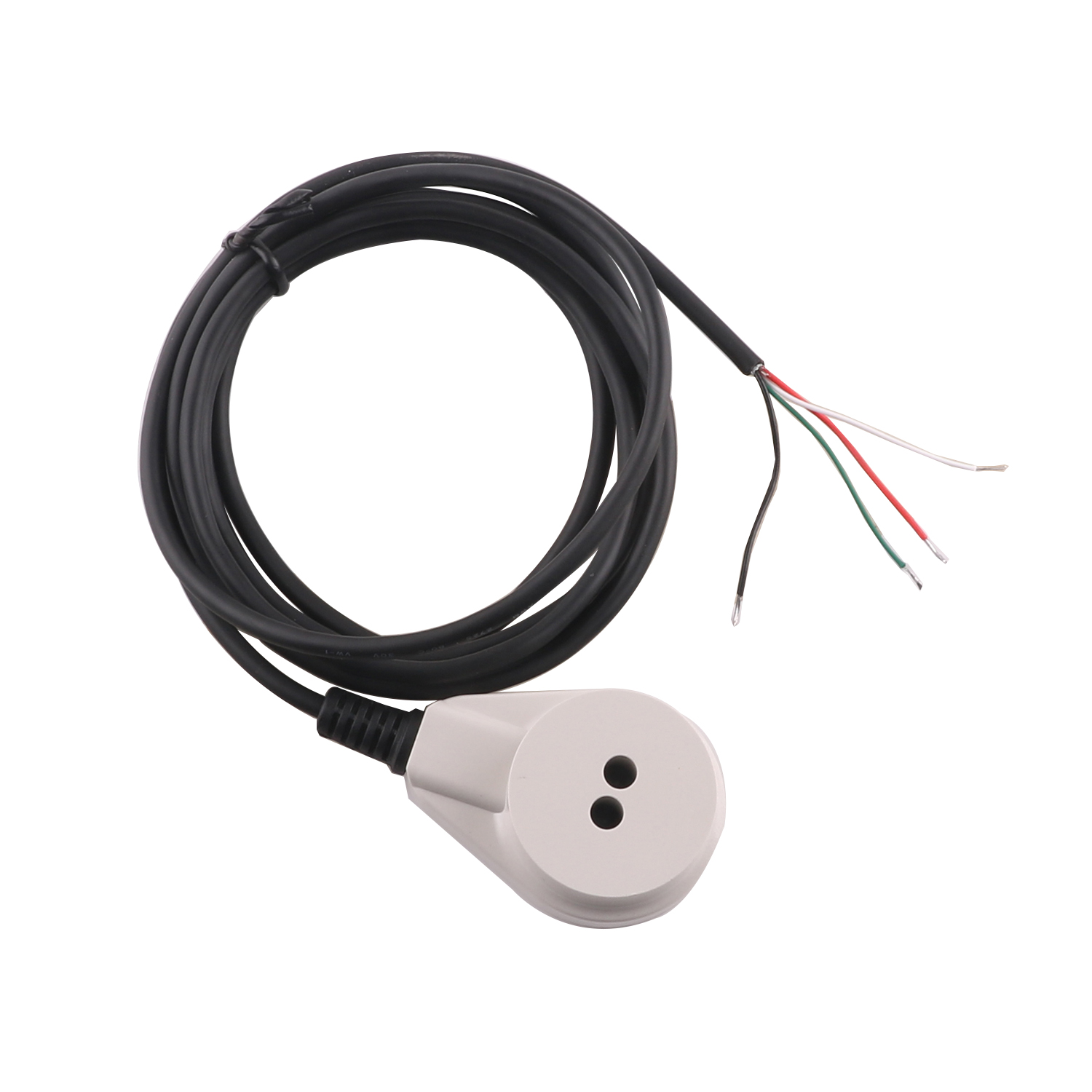

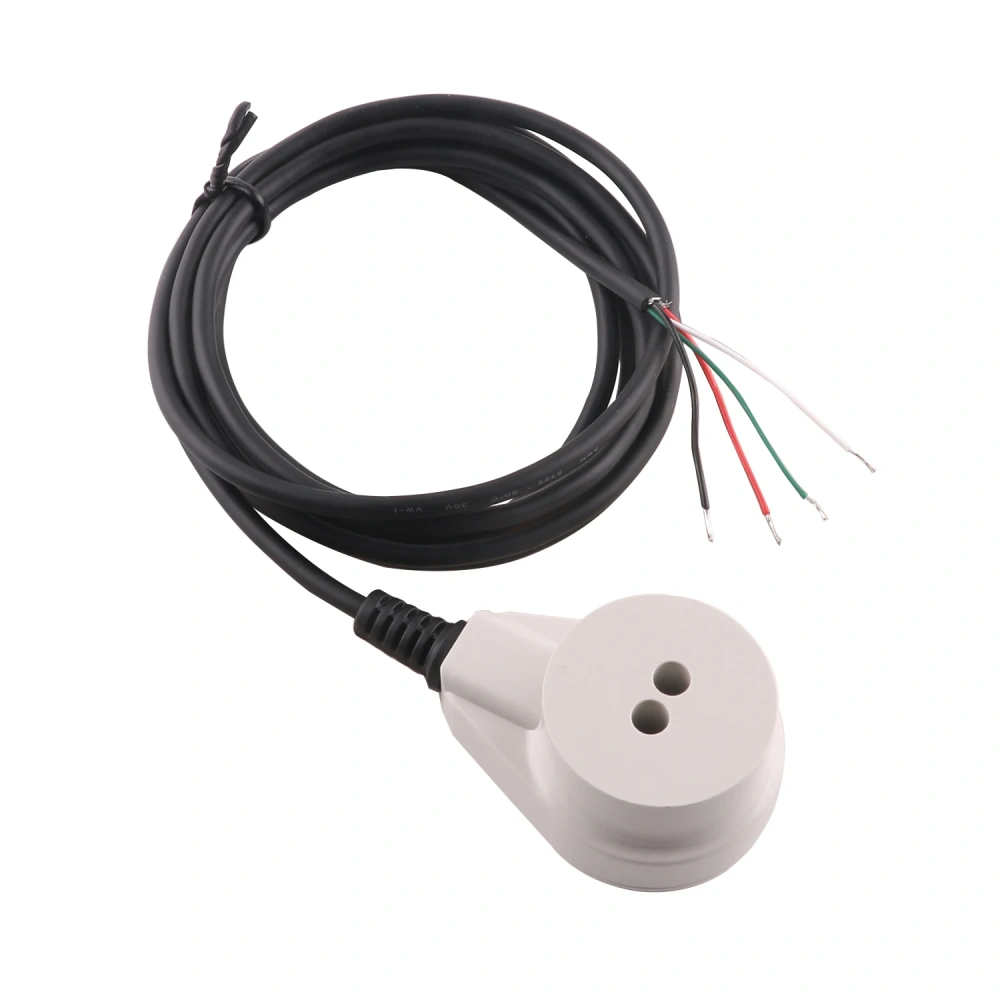

RS485 to near infrared IR converter

1. Specifications and parameters of the whole machine:

Power supply voltage: DC5V-24V

General standard: transparent transmission, support IEC62056-21, IEC1107, DLMS, MODBUS and other communication protocols -

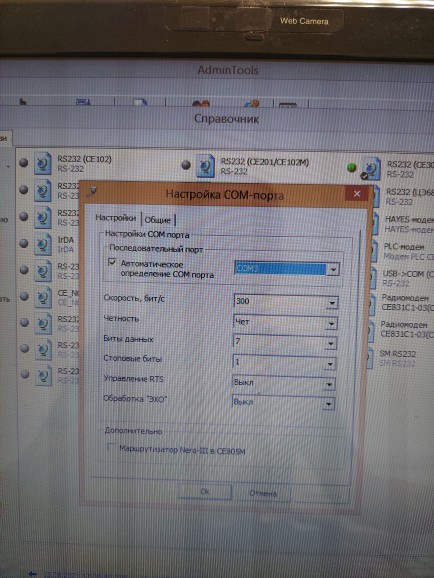

Baud rate: The communication baud rate supports 300-19200bpse'

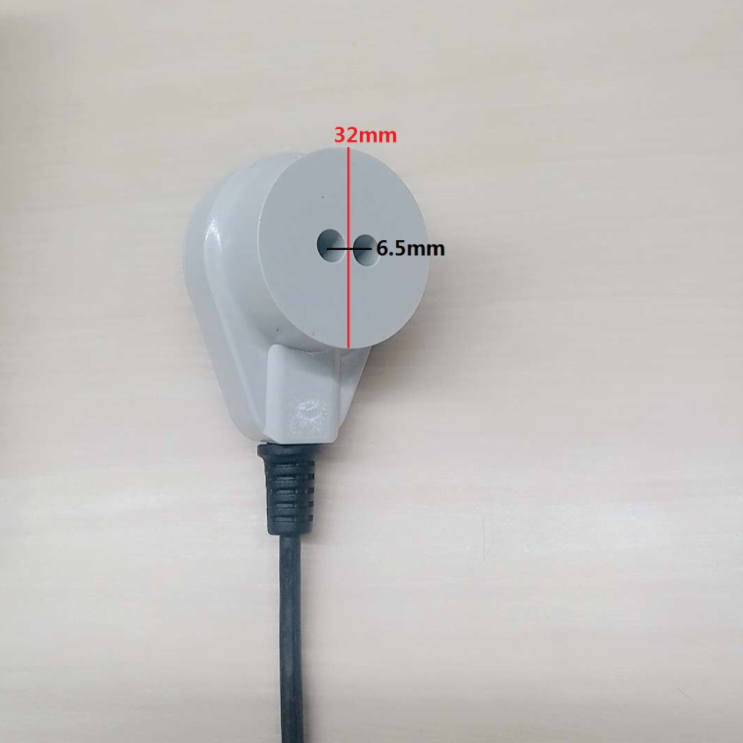

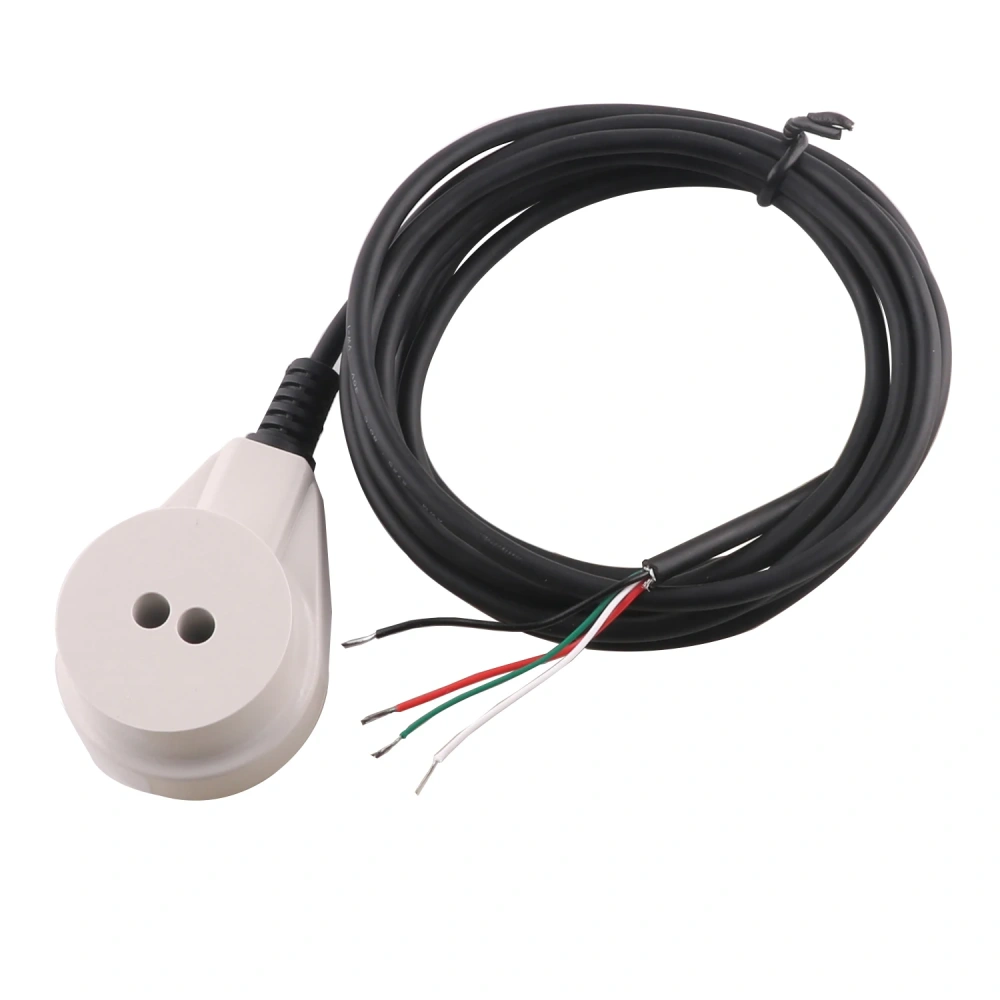

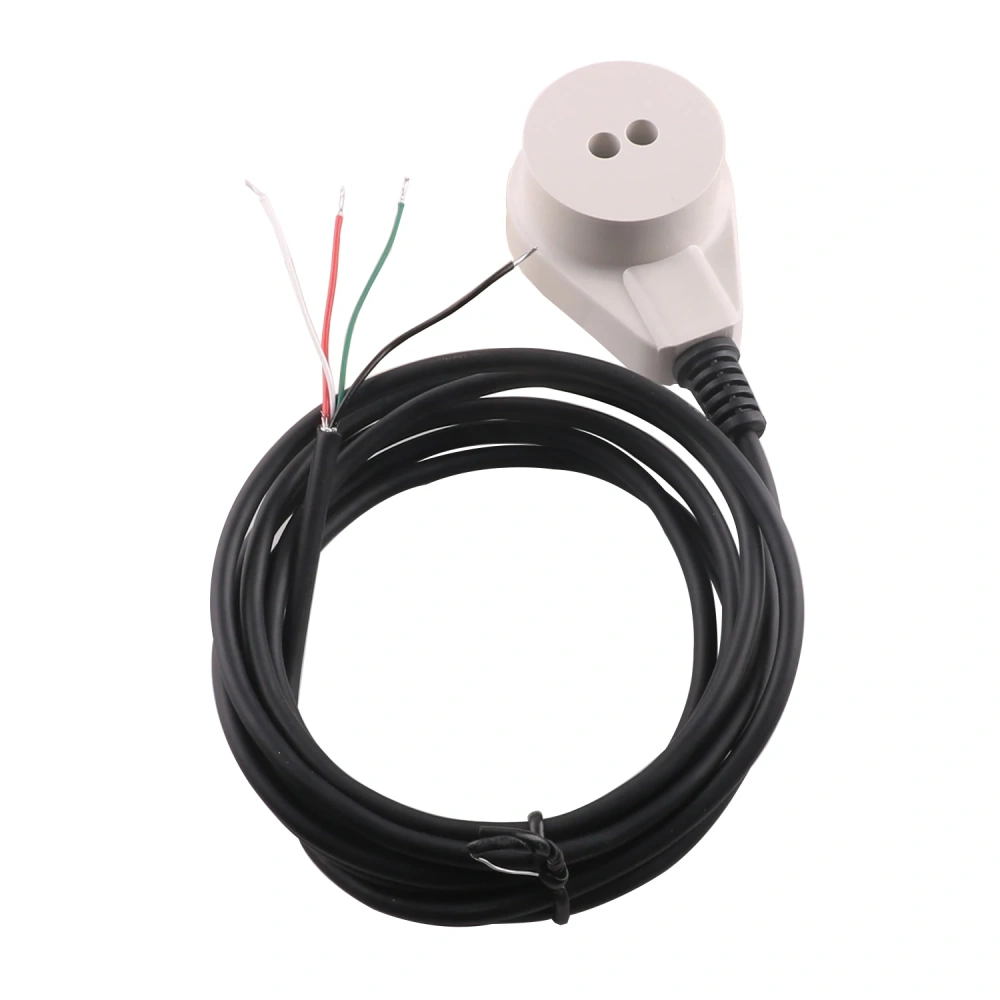

Dimensions : Diameter: 32mm Transmitting and receiving

distance: 6.5mm

Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption Environment:

Specified working range -25℃-70℃

length: 1.5m

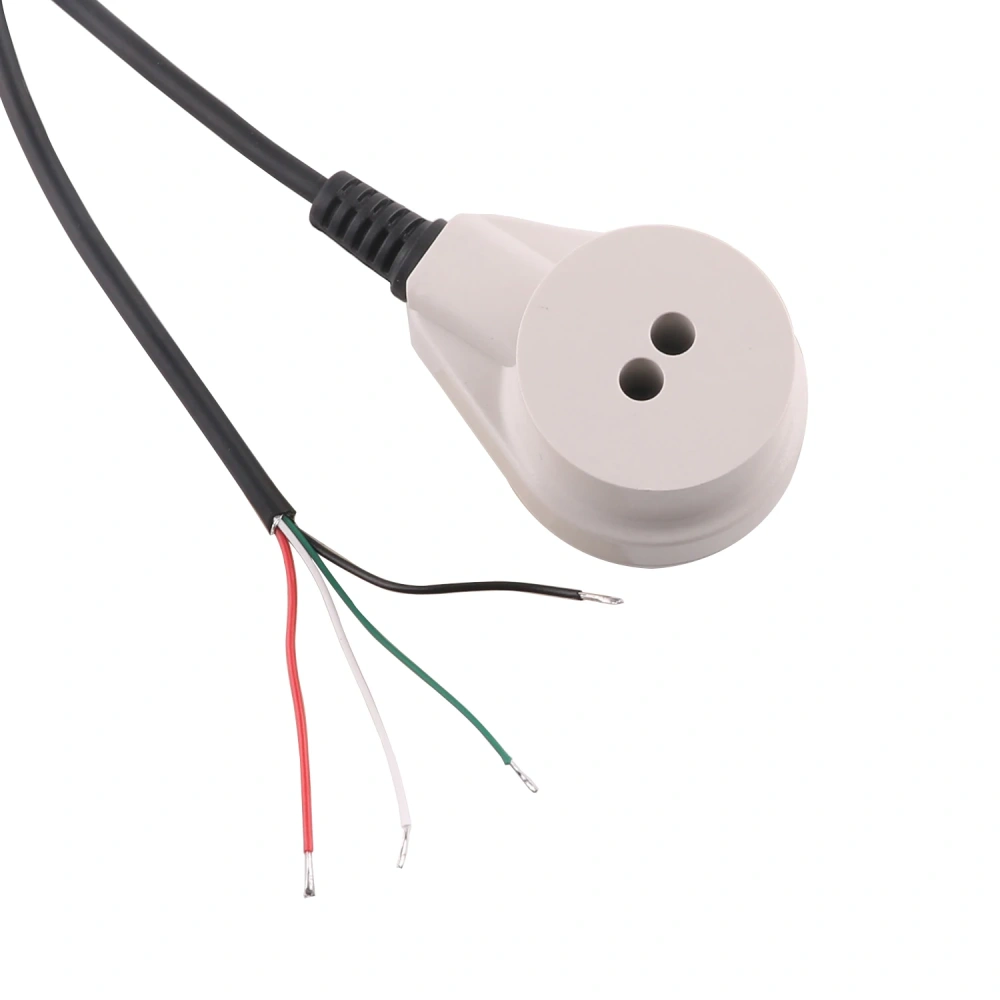

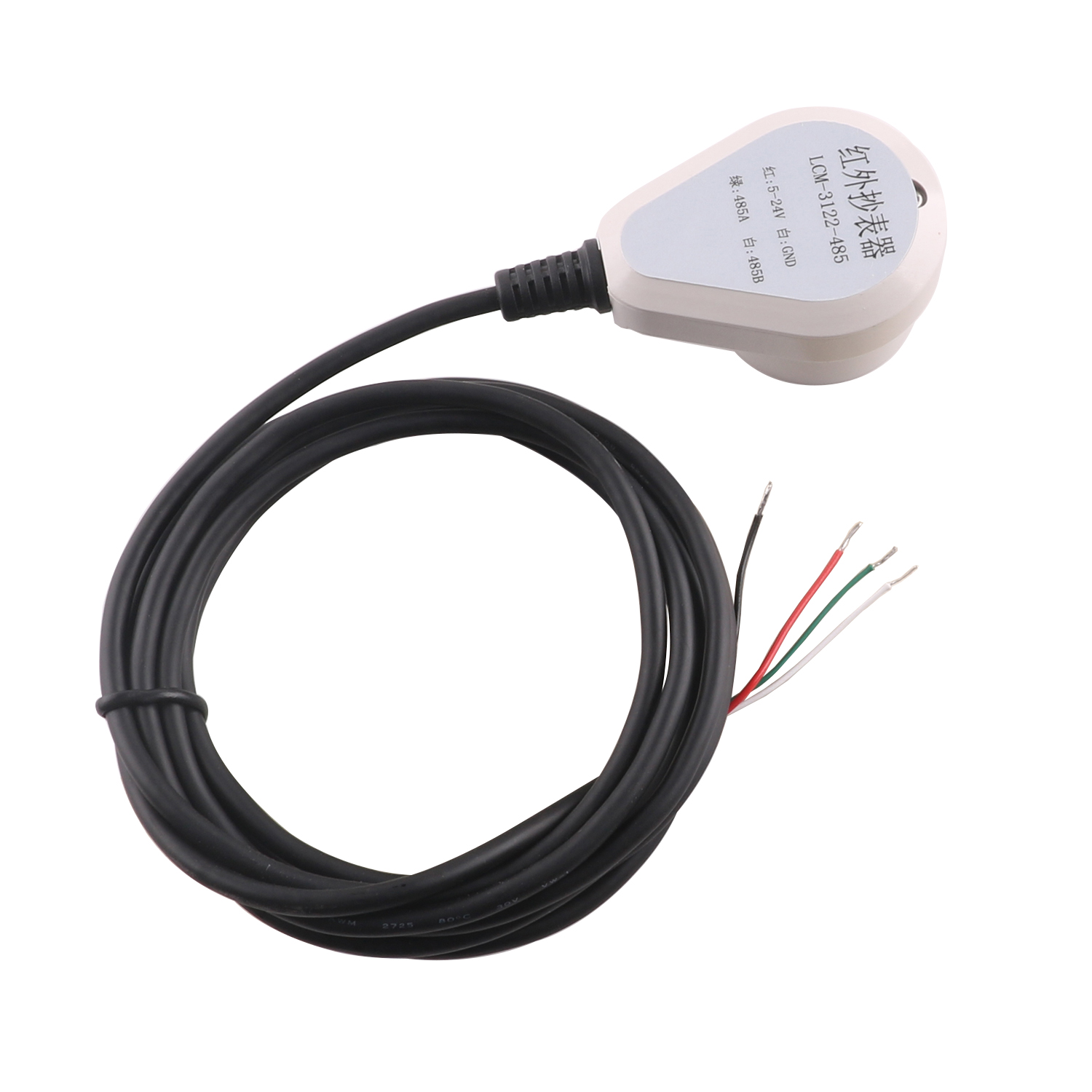

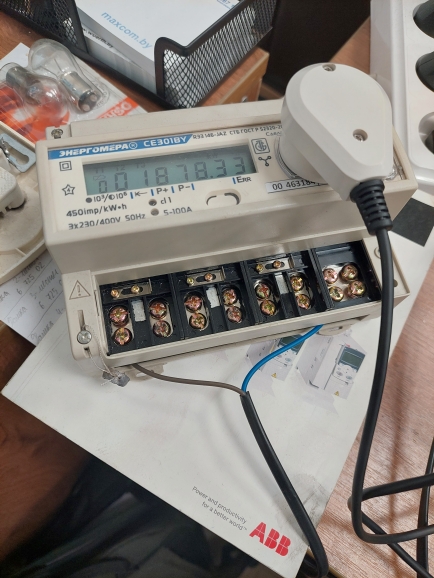

2. Installation Wiring method:red (power supply positive 5-24v), black (GND), Green (RS485A), white (RS485B) Wiring identification: reserved red wire and black wire, suitable for DC5V-24V wide voltage
